| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
535 pcs
|
535 pcs | On Request | 1 | On Request | On Request | 1012 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Width |

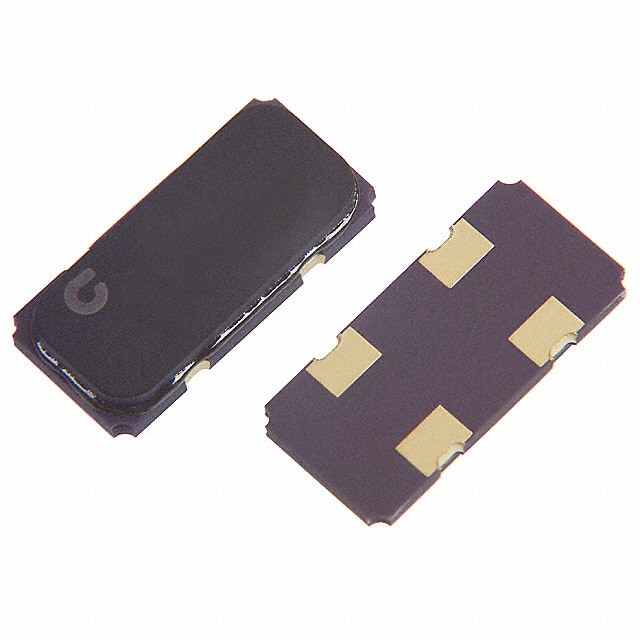

The Citizen Finedevice CS20-3.6864MABJ-UT is a 3.6864 MHz surface mount crystal designed for timing applications. It operates in fundamental mode with a load capacitance of 18 pF. The crystal offers ±30 ppm frequency tolerance and ±50 ppm frequency stability, ensuring reliable performance over temperature. With an equivalent series resistance of 200 Ohm, it provides efficient oscillation. The component is housed in a 4-SMD, no lead package measuring 11.60 mm x 5.50 mm x 2.20 mm, suitable for automated assembly. It is rated for operating temperatures from -10°C to 60°C. This crystal is commonly used in microcontrollers, communication devices, and consumer electronics requiring precise clock generation.
3.6864 MHz.
18 pF.
200 Ohm.
±30 ppm.
±50 ppm.
-10°C to 60°C.
4-SMD, No Lead surface mount package.
Yes, it is listed as RoHS3 Compliant (unverified).
Surface Mount.
Fundamental.
