| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

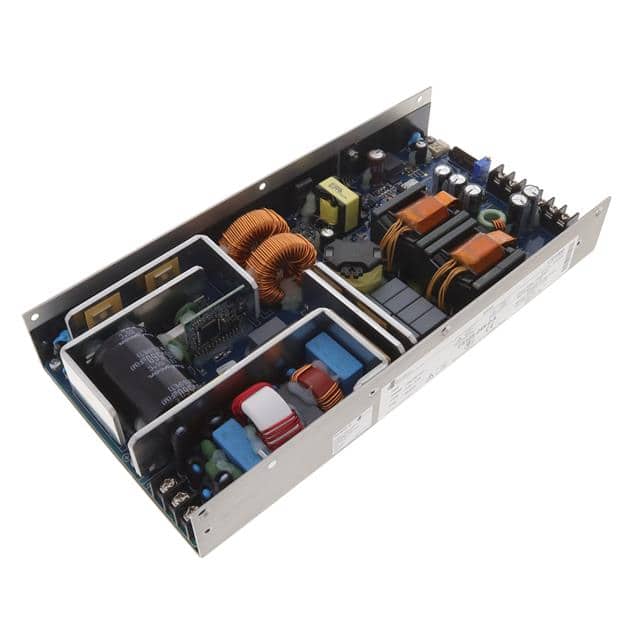

The Advanced Energy CS10S-24N-0-A is a high-efficiency, fanless AC/DC power supply from the Excelsys CS1000 series. It delivers 1000W of power with a single 24V output at 41.6A, operating with 94% efficiency. This convection-cooled unit is designed for applications sensitive to acoustic noise and vibration, making it suitable for medical and industrial environments.
Key features include a universal input range (85-264 VAC), PMBus digital control, remote sense, and adjustable output. The power supply operates within a wide temperature range of -40°C to 85°C with derating. Its compact dimensions of 261.6mm x 127.0mm x 39.1mm allow for flexible integration.
Certifications include IEC60601-1 3rd edition and IEC62368-1, along with SEMI F471 compliance, making it suitable for medical and industrial applications. The fanless design eliminates acoustic noise and vibrations, and it supports N+1 redundancy and paralleling for higher power requirements.
The output voltage is 24V.
The maximum output current is 41.6A.
The power rating is 1000W.
The operating temperature range is -40°C to 85°C (With Derating).
No, this power supply is fanless and convection-cooled.
The dimensions are 261.6mm x 127.0mm x 39.1mm.
It is certified to IEC60601-1 3rd edition, IEC62368-1, and SEMI F471.
