| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

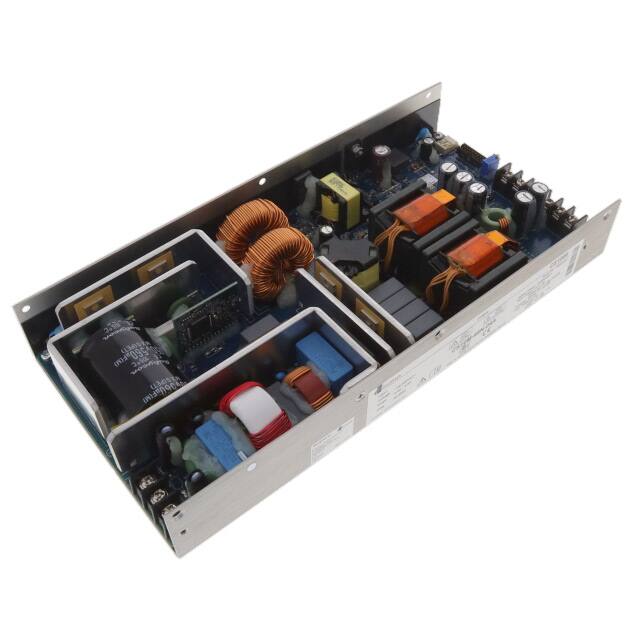

The Advanced Energy CS1000M-48N-04A is part of the Excelsys CS1000 series, offering a high-efficiency, fanless power supply solution. This 1000W single-output converter delivers power via convection cooling, making it suitable for applications sensitive to acoustic noise or vibration, such as scientific and medical equipment.
Key electrical specifications include a 48V output voltage, 20.8A output current, and up to 95% efficiency. It features universal input voltage (100-240 VAC) and includes essential features like PMBus™ for digital control and communications, remote sense, and adjustable output.
The unit is housed in an open-frame U-channel form factor with chassis mount capability. Its dimensions are 261.6mm x 127.0mm x 39.1mm. The power supply is designed for reliability, with high input surge protection up to 4 kV line to PE and approved for use up to 5000m altitude.
Certifications include IEC60601-1 3rd edition and IEC62368-1, making it suitable for both medical and industrial applications like clinical diagnostic equipment, industrial machines, and telecommunications.
The output voltage is 48 VDC.
The maximum output current is 20.8 A.
The power rating is 1000W.
The efficiency is 95%.
The operating temperature range is -40°C to 85°C, with derating.
The dimensions are 261.6mm in length, 127.0mm in width, and 39.1mm in height.
It is certified to IEC60601-1 3rd edition and IEC62368-1.
