Mfr Part #:

CS-023-114.285M

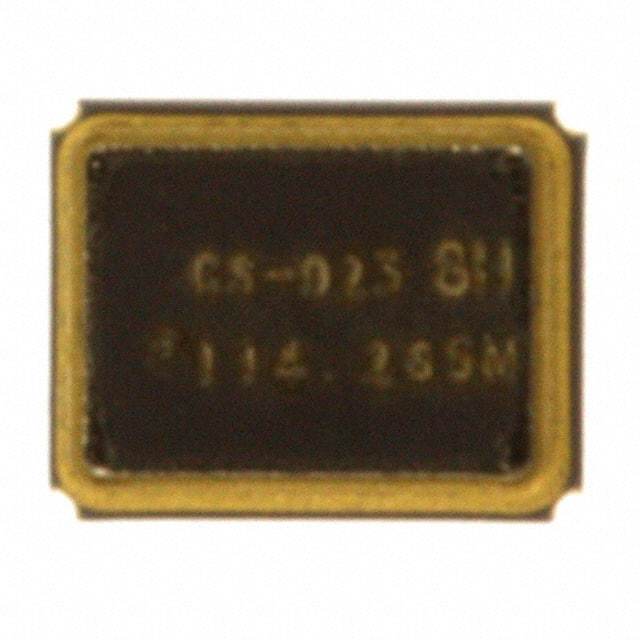

Name: CS-023-114.285M
Brand: Connor Winfield
SKU: CS-023-114.285M

Mfr Name: Connor Winfield

Description:

CRYSTAL 114.2850MHZ 18PF SMD

Stock on Request

CS-023-114.285M Description

Short technical summary and product information.

CRYSTAL 114.2850MHZ 18PF SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Abracon LLC

CRYSTAL 114.2850MHZ 18PF SMD

Abracon LLC

CRYSTAL 114.2850MHZ 18PF SMD

Category	Crystals
Manufacturer Name	Connor Winfield
ESR (Equivalent Series Resistance)	80 Ω
Frequency	114.285 MHz
Frequency Stability	±20ppm
Frequency Tolerance	±20ppm
Height	0.031" (0.80mm)
Load Capacitance	18pF
Mounting Type	Surface Mount
Operating Mode	3rd Overtone
Operating Temperature	-40°C ~ 85°C
Size	0.126" L x 0.098" W (3.20mm x 2.50mm)
Type	MHz Crystal
