| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

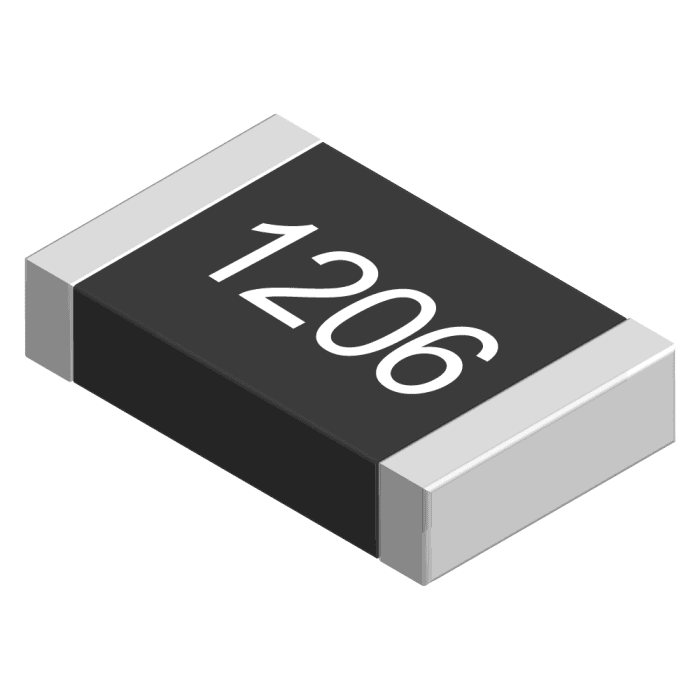

The TE Connectivity CRG1206F3K3 is a general-purpose, thick film surface mount resistor. It offers a resistance value of 3.3 kΩ with a tight tolerance of ±1%. The resistor is rated for 0.25W of power and has a temperature coefficient of ±100 ppm/°C.
Designed for industrial and general-purpose applications, this resistor is suitable for high-frequency operation due to its short lead structure and low capacitance. It operates within a temperature range of -55°C to +125°C. The component is supplied in a 1206 package size, measuring 3.1mm in length and 1.55mm in width, with a height of 0.65mm. The termination style is solder, and it is packaged on tape and reel.
Key specifications include a voltage rating of 200V and 2 terminations. The construction involves screen-printed resistive elements on a ceramic base, laser trimming for tolerance, and electroplated end terminations. This series offers a wide range of resistance values from 0 Ω to 1 MΩ.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 3.3 kΩ.
The tolerance is ±1%.
The power rating is 0.25W.
The operating temperature range is -55°C to +155°C.
The package size is 1206.
The Moisture Sensitivity Level is Level 2.
