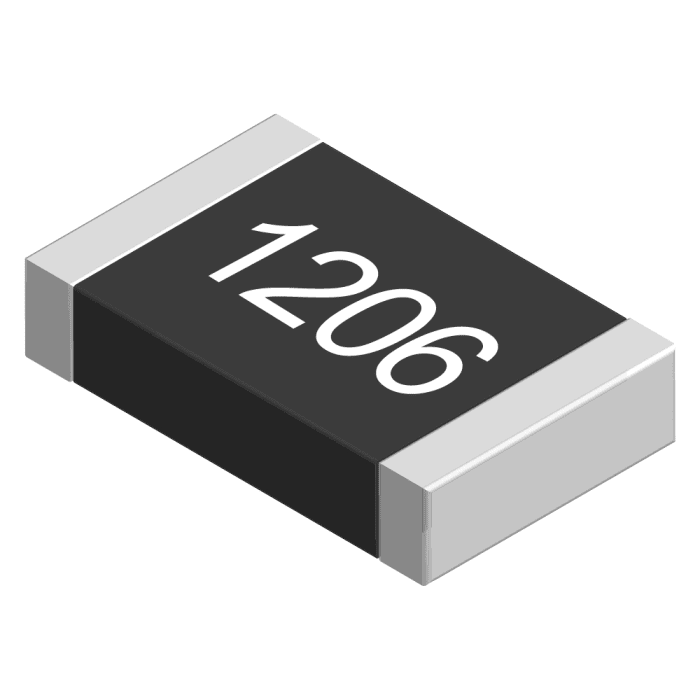

CRG1206F390R This TE Connectivity CRG1206F390R is a thick film surface mount resistor with a resistance of 390 Ohms and a tolerance of ±1%. It has a power rating of 0.25W and comes in a 1206 package.
Mfr Part #:

CRG1206F390R

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity CRG1206F390R is a thick film surface mount resistor with a resistance of 390 Ohms and a tolerance of ±1%. It has a power rating of 0.25W and comes in a 1206 package.
✓ Total Stock: 30,000 pcs
$ Price Range: $0.05

CRG1206F390R Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRG1206F390R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Failure Rate
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Termination Style
Tolerance
Voltage
Width
View Similar Products (0)

CRG1206F390R Description

Short technical summary and product information.

The TE Connectivity CRG1206F390R is a general-purpose, thick film surface mount resistor designed for industrial and general use. It offers a resistance value of 390 Ohms with a tight tolerance of ±1% and a power rating of 0.25W.



This resistor features a 1206 package size, making it suitable for automated assembly processes. The operating temperature range is from -55°C to +155°C, with a temperature coefficient of ±100ppm/°C. Its construction involves precious metal terminations printed on a ceramic base, with the resistive element screen-printed and laser-trimmed for accuracy.



The CRG1206 series is known for its high power-to-size ratio and suitability for high-frequency applications due to its short lead structure and low capacitance. The termination style is solder, and it is supplied on tape and reel.



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions.

CRG1206F390R Quick Information

Product Type: Thick Film Surface Mount Resistor
Series: CRG
Canonical Name: TE Connectivity CRG Series 390 Ohm ±1% 0.25W Thick Film Surface Mount Resistor, 1206 Package
Subcategory: Surface Mount Resistor

CRG1206F390R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: REACH Unaffected

CRG1206F390R Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRG1206F390R Features

  • 390 Ohm resistance with ±1% tolerance.
  • 0.25W power rating in a 1206 package.
  • Wide operating temperature range: -55°C to +155°C.
  • Thick film technology for high power density.
  • Surface mount design for automated assembly.

CRG1206F390R Applications

  • Suitable for general purpose applications.
  • Ideal for high-frequency circuit designs.
  • Used in industrial electronic equipment.
  • Component for automated PCB assembly.

CRG1206F390R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRG1206F390R resistor?

The resistance value is 390 Ohms.

What is the tolerance of the CRG1206F390R resistor?

The tolerance is ±1%.

What is the power rating of the CRG1206F390R resistor?

The power rating is 0.25W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to +155°C.

What is the package size of the CRG1206F390R resistor?

The package size is 1206.

What is the MSL rating for this component?

The Moisture Sensitivity Level (MSL) is 1.
