| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95,000 pcs
|
95000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

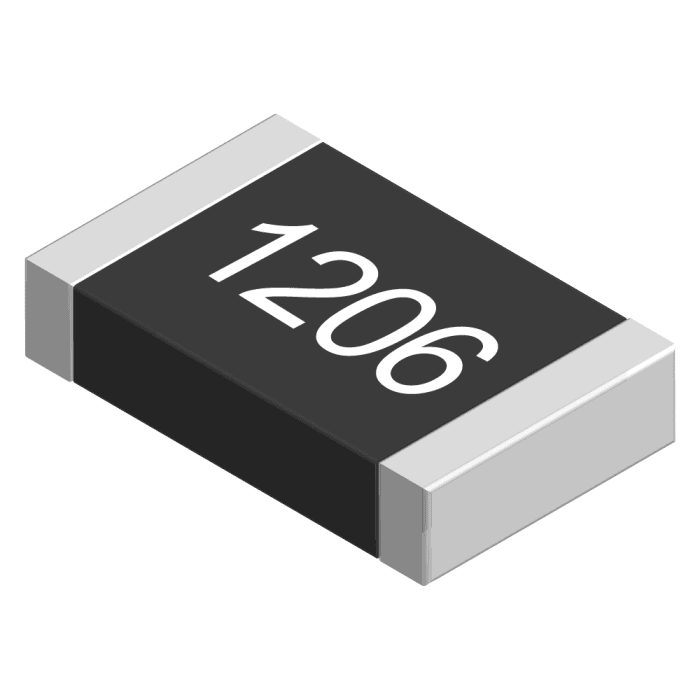

This TE Connectivity CRG1206F330R is a thick film surface mount resistor designed for general purpose and industrial applications. It offers a resistance value of 330 Ohms with a tight tolerance of ±1% and a power rating of 0.25W.
The resistor features a 1206 package size, measuring 3.1mm in length and 1.55mm in width, with a height of 0.65mm. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. The component is suitable for high-frequency operation due to its short lead structure and low capacitance.
Constructed with precious metal terminations on a ceramic base, the resistive element is screen printed and laser-trimmed to achieve the specified tolerance. The termination style is solder, and it is supplied in tape and reel packaging. This resistor is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 330 Ohms.
The tolerance is ±1%.
The power rating is 0.25W.
The operating temperature range is -55°C to 155°C.
The 1206 package measures 3.10mm in length and 1.55mm in width, with a height of 0.65mm.
The temperature coefficient is ±100ppm/°C.
The Moisture Sensitivity Level is Level 1.
