| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

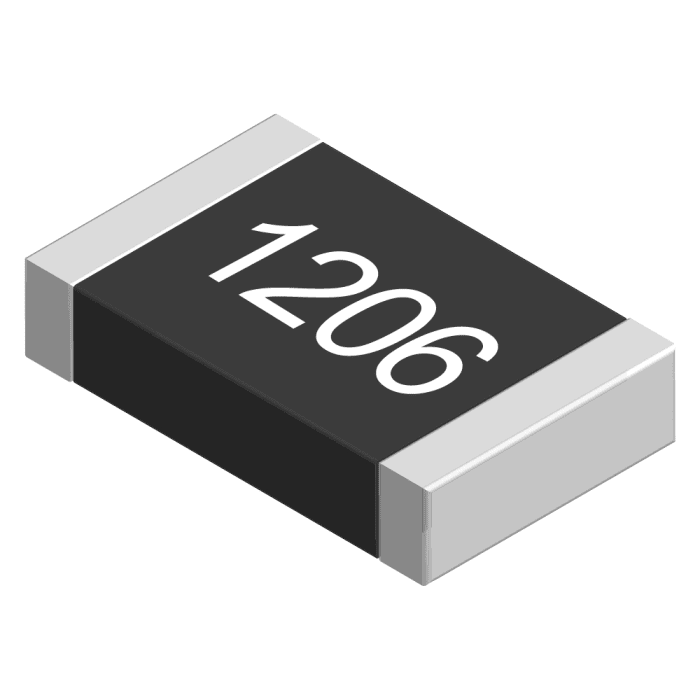

The TE Connectivity CRG1206F22R is a general-purpose, thick film surface mount resistor designed for industrial and general use. It offers a high power-to-size ratio and is suitable for various applications, including high-frequency operation due to its short lead structure and low capacitance.
Key electrical specifications include a resistance value of 22 Ohms with a tight tolerance of ±1%. The resistor is rated for 0.25W of power and operates within a temperature range of -55°C to +155°C, with a temperature coefficient of ±200 ppm/°C.
Mechanically, the component is in the 1206 package size, measuring 3.10mm in length and 1.55mm in width, with a height of 0.65mm. It features a solder termination style and is supplied on tape and reel, making it suitable for automated assembly processes.
This resistor series is constructed with precious metal terminations on a ceramic base, with the resistive element screen-printed and laser-trimmed to tolerance. The terminal finish is Matte Sn.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 Ohms.
The tolerance is ±1%.
The power rating is 0.25W.
The operating temperature range is -55°C to +155°C.
The 1206 package measures 3.10mm in length and 1.55mm in width.
The MSL rating is Level 1.
