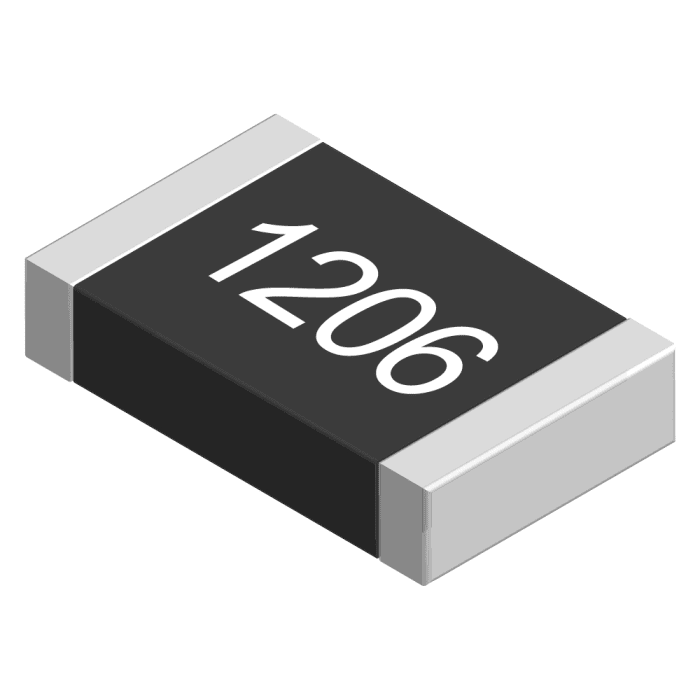

CRG1206F1K5 The TE Connectivity CRG1206F1K5 is a thick film surface mount resistor with a resistance of 1.5 kΩ and a tolerance of ±1%. It has a power rating of 0.25W and comes in a 1206 package.
Mfr Part #:

CRG1206F1K5

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity CRG1206F1K5 is a thick film surface mount resistor with a resistance of 1.5 kΩ and a tolerance of ±1%. It has a power rating of 0.25W and comes in a 1206 package.
✓ Total Stock: 25,013 pcs
$ Price Range: $0.05

CRG1206F1K5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
10,013 pcs
On Request
10013 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRG1206F1K5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Failure Rate
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Termination Style
Tolerance
Voltage
Width
View Similar Products (0)

CRG1206F1K5 Description

Short technical summary and product information.

This TE Connectivity CRG1206F1K5 is a general-purpose, thick film surface mount resistor designed for industrial and general use. It offers a resistance value of 1.5 kΩ with a tight tolerance of ±1% and a power rating of 0.25W.



The resistor features a 1206 package size, measuring 3.10mm in length and 1.55mm in width, with a height of 0.65mm. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. The termination style is solder, and it is suitable for high-frequency applications due to its short lead structure and low capacitance.



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The thick film technology provides a high power-to-size ratio, making it ideal for various applications. Construction involves precious metal terminations printed on a ceramic base, with the resistive element screen printed and laser-trimmed to tolerance.

CRG1206F1K5 Quick Information

Product Type: Thick Film Surface Mount Resistor
Series: CRG
Canonical Name: TE Connectivity CRG Series 1.5 kΩ ±1% 0.25W Thick Film Surface Mount Resistor, 1206 Package
Subcategory: Surface Mount Resistor

CRG1206F1K5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRG1206F1K5 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRG1206F1K5 Features

  • 1.5 kΩ resistance with ±1% tolerance.
  • 0.25W power rating in a 1206 package.
  • Wide operating temperature range of -55°C to 155°C.
  • Thick film technology for high power density.
  • RoHS3 compliant and MSL 1 rated.

CRG1206F1K5 Applications

  • Used in signal filtering circuits
  • Suitable for voltage division
  • Ideal for current limiting
  • Applicable in consumer electronics
  • Used in industrial and automotive electronics

CRG1206F1K5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRG1206F1K5 resistor?

The resistance value is 1.5 kΩ.

What is the tolerance of the TE Connectivity CRG1206F1K5 resistor?

The tolerance is ±1%.

What is the power rating of the CRG1206F1K5 surface mount resistor?

The power rating is 0.25W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the 1206 package resistor?

The 1206 package measures 3.10mm in length, 1.55mm in width, and 0.65mm in height.

What is the Moisture Sensitivity Level (MSL) for the CRG1206F1K5?

The Moisture Sensitivity Level is 1 Unlimited.
