| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

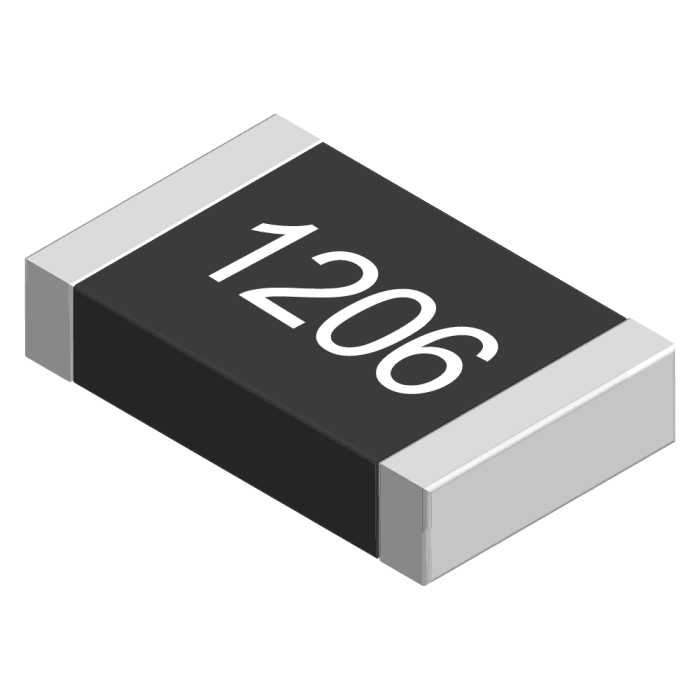

The TE Connectivity CRG1206F180R is a general-purpose, thick film surface mount resistor designed for industrial and general use. It offers a resistance value of 180 Ohms with a tight tolerance of ±1% and a power rating of 0.25W.
This resistor operates within a temperature range of -55°C to +155°C and features a temperature coefficient of ±100 ppm/°C. The component is housed in a 1206 package size, measuring 3.10mm in length and 1.55mm in width, with a height of 0.65mm. Its termination style is solder, and it is suitable for surface mounting.
The CRG1206 Series resistors are designed for high-frequency applications due to their short lead structure and low capacitance. The construction involves precious metal terminations printed on a ceramic base, with the resistive element screen-printed and laser-trimmed to tolerance. The component is supplied on tape and reel, indicating suitability for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 180 Ohms.
The tolerance is ±1%.
The power rating is 0.25W.
The operating temperature range is -55°C to +155°C.
The 1206 package measures 3.10mm in length, 1.55mm in width, and 0.65mm in height.
The Moisture Sensitivity Level (MSL) is Level 1.
