| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
$0.03
|
350 pcs |
$0.03
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

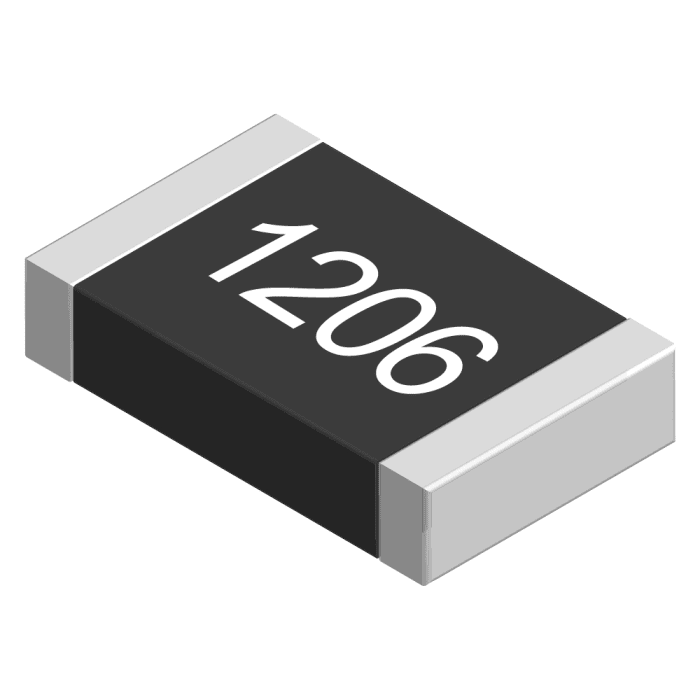

This TE Connectivity CRG1206F100R is a thick film surface mount resistor designed for general purpose and industrial applications. It offers a resistance value of 100 Ohms with a tight tolerance of ±1% and a power rating of 0.25W.
The resistor features a 1206 package size, measuring 3.10mm in length and 1.55mm in width, with a height of 0.65mm. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200 ppm/°C. The thick film technology provides a high power to size ratio, making it suitable for various applications, including high-frequency operation due to its short lead structure and low capacitance.
Construction involves precious metal terminations printed on a ceramic base, with the resistive element screen printed and a passivation layer added. The resistor is laser-trimmed to tolerance. The termination style is solder, and it comes in a tape and reel package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 Ohms.
The tolerance is ±1%.
The power rating is 0.25W.
The operating temperature range is -55°C to 155°C.
The package size is 1206 (3216 Metric).
The temperature coefficient is ±200 ppm/°C.
The Moisture Sensitivity Level is Level 2.
