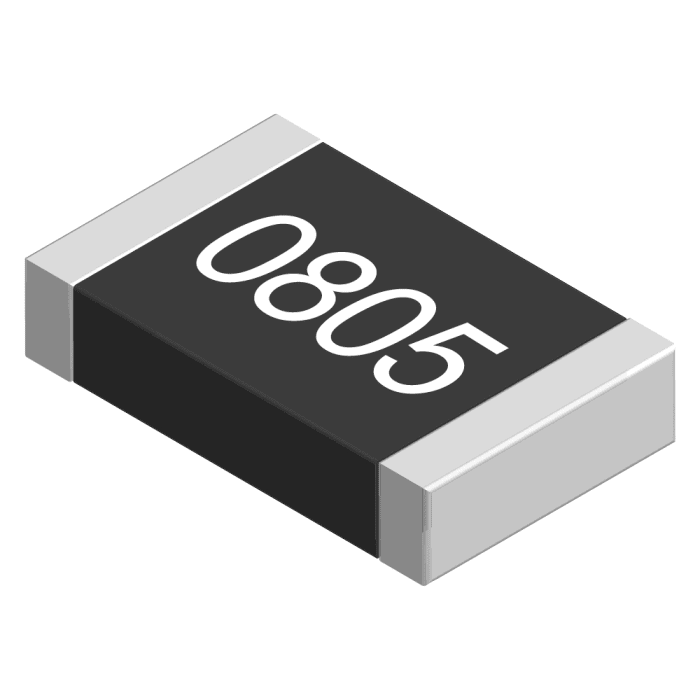

CRG0805ZR The TE Connectivity CRG0805ZR is a thick film surface mount resistor with 0 Ohm resistance and a 0.125W power rating. It comes in an 0805 package.
Mfr Part #:

CRG0805ZR

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity CRG0805ZR is a thick film surface mount resistor with 0 Ohm resistance and a 0.125W power rating. It comes in an 0805 package.
✓ Total Stock: 95,000 pcs
$ Price Range: $0.05

CRG0805ZR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
90,000 pcs
On Request
90000 pcs On Request 1 On Request On Request On Request On Request On Request
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRG0805ZR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Height
Length
Number of Terminations
Operating Temperature
Power Rating
Resistance
Supplier Device Package
Temperature Coefficient
Termination Style
Tolerance
Voltage
Width
View Similar Products (0)

CRG0805ZR Description

Short technical summary and product information.

This TE Connectivity CRG0805ZR is a thick film surface mount resistor designed for general-purpose applications. It features a resistance value of 0 Ohms with a tolerance of ±0% and a power rating of 0.125W. The operating temperature range is from -55°C to 125°C.



The resistor is housed in an industry-standard 0805 package, measuring 2mm in length and 1.25mm in width, with a height of 0.55mm. The termination style is solder, and it is supplied on tape and reel.



This component is suitable for various applications, including high-frequency operation due to its short lead structure and low capacitance. It is constructed with precious metal terminations printed on a ceramic base, with the resistive element screen printed and trimmed by laser to achieve the specified tolerance.

CRG0805ZR Quick Information

Product Type: Surface Mount Resistor
Series: CRG
Canonical Name: TE Connectivity CRG0805ZR Thick Film Surface Mount Resistor
Subcategory: Surface Mount Resistor

CRG0805ZR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRG0805ZR Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRG0805ZR Features

  • 0 Ohm resistance with ±0% tolerance.
  • 0.125W power rating.
  • Operating temperature from -55°C to 125°C.
  • 0805 industry standard package size.
  • Thick film technology for general purpose use.

CRG0805ZR Applications

  • Suitable for high-frequency circuit applications.
  • Used as zero-ohm jumpers in PCB designs.
  • Ideal for general purpose surface mount resistor use.
  • Applicable in industrial and consumer electronic devices.

CRG0805ZR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the CRG0805ZR resistor?

The resistance of the CRG0805ZR resistor is 0 Ohms.

What is the power rating of the CRG0805ZR resistor?

The power rating of the CRG0805ZR resistor is 0.125W.

What is the operating temperature range for the CRG0805ZR resistor?

The operating temperature range for the CRG0805ZR resistor is -55°C to 125°C.

What package size is the CRG0805ZR resistor?

The CRG0805ZR resistor is in an 0805 package.

What is the tolerance of the CRG0805ZR resistor?

The tolerance of the CRG0805ZR resistor is ±0%.

What is the MSL rating for the CRG0805ZR resistor?

The MSL rating for the CRG0805ZR resistor is Level 1.
