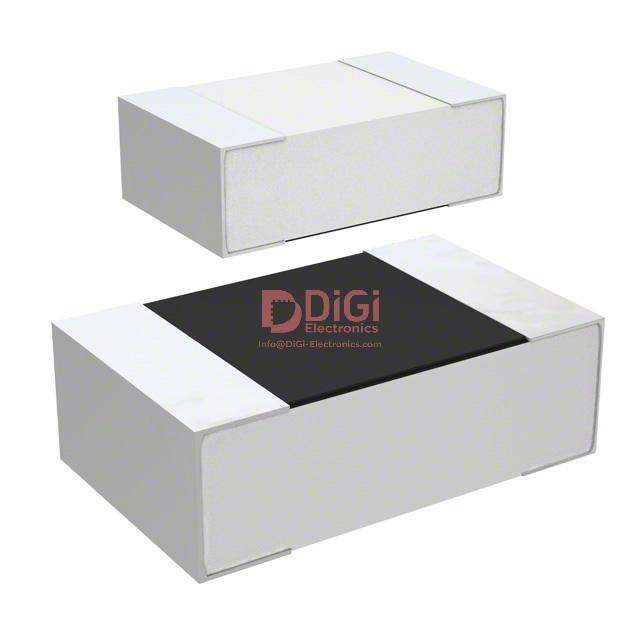

CRG0805F5K6 The TE Connectivity CRG0805F5K6 is a surface mount chip resistor with a resistance of 5.6 kOhms and a tolerance of ±1%. It has a power rating of 1/8W and is housed in an 0805 package.
Mfr Part #:

CRG0805F5K6

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity CRG0805F5K6 is a surface mount chip resistor with a resistance of 5.6 kOhms and a tolerance of ±1%. It has a power rating of 1/8W and is housed in an 0805 package.
✓ Total Stock: 2,400 pcs
$ Price Range: $0.05

CRG0805F5K6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,400 pcs
On Request
2400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRG0805F5K6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Composition
Height
Industrial Grade
Length
Medical Grade
Military Grade
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CRG0805F5K6 Description

Short technical summary and product information.

This TE Connectivity CRG0805F5K6 is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 5.6 kOhms with a tight tolerance of ±1%, ensuring precise circuit performance. The resistor is rated for 0.125W (1/8W) of power dissipation.



Constructed with thick film technology, this component operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±100ppm/°C. The package size is 0805 (2012 Metric), measuring 2.00mm in length and 1.25mm in width, with a height of 0.65mm.



It is suitable for applications requiring reliable and stable resistance characteristics. The component has 2 terminations and is supplied in tape and reel packaging.

CRG0805F5K6 Quick Information

Product Type: Chip Resistor - Surface Mount
Series: Neohm
Canonical Name: TE Connectivity CRG0805F5K6 Chip Resistor - Surface Mount 5.6 kOhms ±1% 1/8W
Subcategory: Surface Mount

CRG0805F5K6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRG0805F5K6 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRG0805F5K6 Features

  • Surface mount chip resistor with 5.6 kOhms resistance.
  • Tight tolerance of ±1% for precise applications.
  • Rated for 1/8W power dissipation.
  • Operates across a wide temperature range.
  • Compact 0805 package size.

CRG0805F5K6 Applications

  • Used in precision electronic circuits
  • Suitable for surface mounting on PCBs
  • Ideal for low power applications
  • Applicable in consumer electronics
  • Suitable for thermal environments up to 155°C

CRG0805F5K6 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRG0805F5K6 resistor?

The resistance value is 5.6 kOhms.

What is the tolerance of the CRG0805F5K6 resistor?

The tolerance is ±1%.

What is the power rating of the CRG0805F5K6 resistor?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for the CRG0805F5K6 resistor?

The operating temperature range is -55°C to 155°C.

What is the package type for the CRG0805F5K6 resistor?

The package type is 0805 (2012 Metric).
