| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

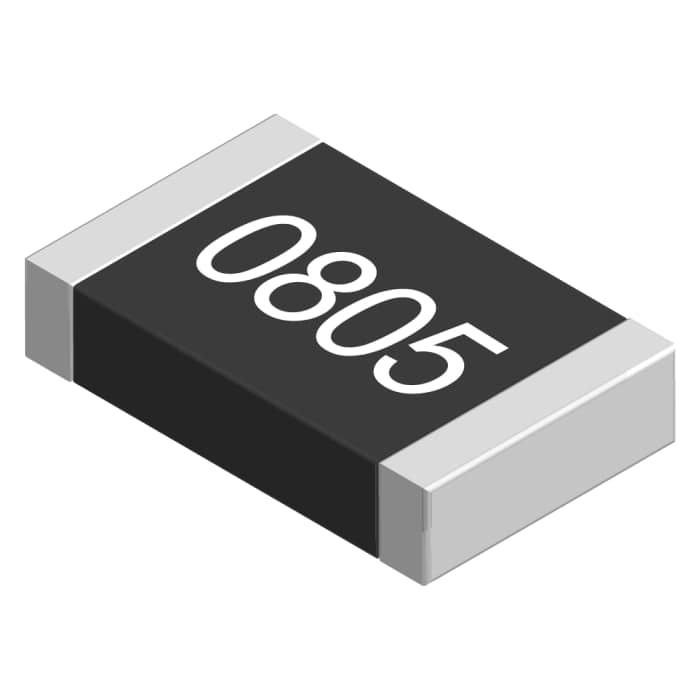

The TE Connectivity CRG0805F470R is a high-quality thick film surface mount resistor designed for general-purpose applications. It features a resistance value of 470 Ohms with a tight tolerance of ±1%, ensuring precise circuit performance. The resistor is rated for 0.125W of power and operates within a temperature range of -55°C to 155°C.
Constructed with a thick film resistive element on a ceramic base, this component is housed in an industry-standard 0805 package, measuring 2.00mm in length and 1.25mm in width. The termination style is solder, suitable for standard surface mount assembly processes. Its compact size and robust construction make it ideal for various industrial applications, including high-frequency operations due to its low capacitance.
This resistor is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under recommended conditions. The temperature coefficient is ±100ppm/°C, providing stability across temperature variations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 470 Ohms.
The tolerance is ±1%.
The power rating is 0.125W.
The operating temperature range is -55°C to 155°C.
The 0805 package measures 2.00mm in length and 1.25mm in width.
The Moisture Sensitivity Level (MSL) is 1.
