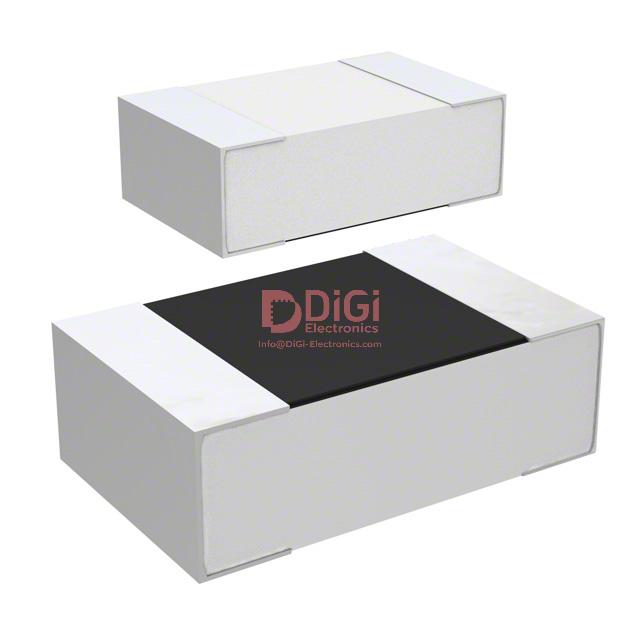

CRG0805F3K9 The TE Connectivity CRG0805F3K9 is a surface mount chip resistor with a resistance of 3.9 kΩ and a tolerance of ±1%. It has a power rating of 1/8W and a thick film composition.
Mfr Part #:

CRG0805F3K9

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity CRG0805F3K9 is a surface mount chip resistor with a resistance of 3.9 kΩ and a tolerance of ±1%. It has a power rating of 1/8W and a thick film composition.
✓ Total Stock: 4,004 pcs
$ Price Range: $0.05

CRG0805F3K9 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRG0805F3K9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CRG0805F3K9 Description

Short technical summary and product information.

This TE Connectivity CRG0805F3K9 is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 3.9 kΩ with a tight tolerance of ±1%, ensuring precise circuit performance.



The resistor is constructed with thick film technology and has a power rating of 0.125W (1/8W). It operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±100ppm/°C.



The component comes in an 0805 (2012 Metric) package, suitable for standard surface mount assembly processes. Its dimensions are 2.00mm in length and 1.25mm in width, with a height of 0.65mm. The device has two terminations.



This part is supplied in Tape & Reel packaging, facilitating automated placement on printed circuit boards.

CRG0805F3K9 Quick Information

Product Type: Chip Resistor - Surface Mount
Series: CRG
Canonical Name: TE Connectivity CRG0805F3K9 Chip Resistor - Surface Mount 3.9 kΩ ±1% 1/8W Thick Film
Subcategory: Surface Mount

CRG0805F3K9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRG0805F3K9 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRG0805F3K9 Features

  • Surface mount chip resistor with 3.9 kΩ resistance.
  • ±1% tolerance for precise circuit performance.
  • Rated for 1/8W power dissipation.
  • Thick film composition for stability.
  • 0805 package size for automated assembly.

CRG0805F3K9 Applications

  • Suitable for general electronic circuits.
  • Ideal for signal conditioning applications.
  • Used in power supply filtering.
  • Component in consumer electronics.

CRG0805F3K9 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRG0805F3K9?

The resistance value is 3.9 kΩ.

What is the tolerance of the CRG0805F3K9 resistor?

The tolerance is ±1%.

What is the power rating of the CRG0805F3K9?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the CRG0805F3K9 available in?

It is available in the 0805 (2012 Metric) package size.
