| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14,909 pcs
|
14909 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

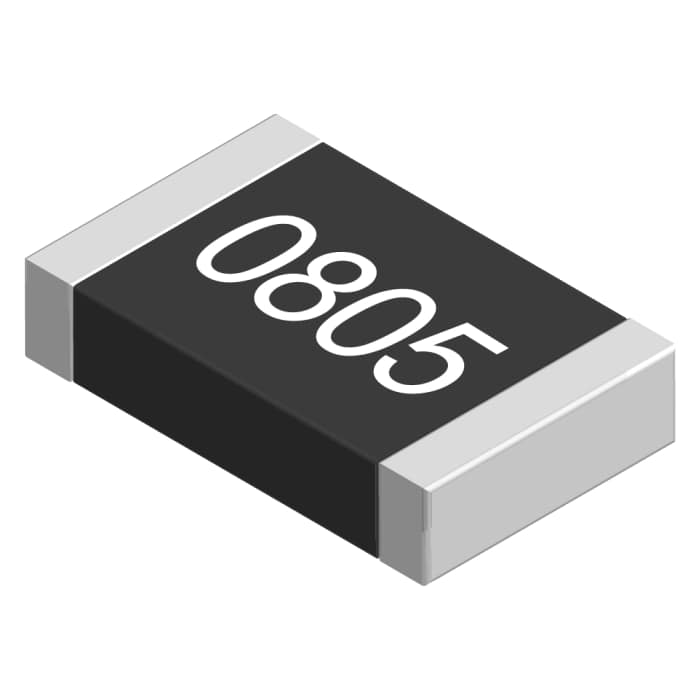

This TE Connectivity CRG0805F22K is a thick film surface mount resistor designed for general purpose applications. It features a resistance value of 22 kΩ with a tight tolerance of ±1% and a power rating of 0.125W.
The resistor operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. It is housed in an industry-standard 0805 package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.65mm. The termination style is solder.
This component is suitable for various industrial applications, including high-frequency operations due to its short lead structure and low capacitance. The construction involves precious metal terminations printed on a ceramic base, with the resistive element screen printed and laser-trimmed to tolerance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22kΩ.
The tolerance is ±1%.
The power rating is 0.125W.
The operating temperature range is -55°C to 155°C.
The 0805 package measures 2.00mm in length, 1.25mm in width, and 0.65mm in height.
The Moisture Sensitivity Level (MSL) is Level 1 Unlimited.
