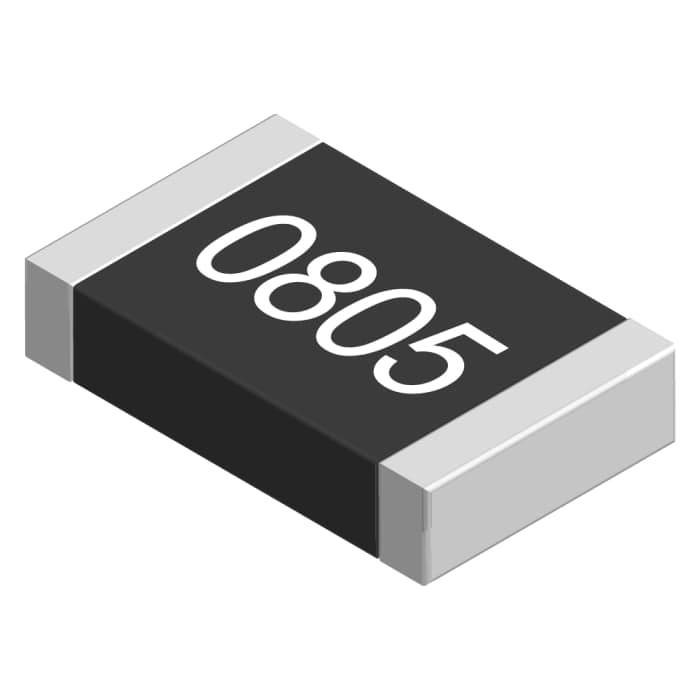

CRG0805F10R This TE Connectivity CRG0805F10R is a thick film surface mount resistor with a resistance of 10 Ohms and a tolerance of ±1%. It has a power rating of 0.125W and comes in an 0805 package.
Mfr Part #:

CRG0805F10R

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity CRG0805F10R is a thick film surface mount resistor with a resistance of 10 Ohms and a tolerance of ±1%. It has a power rating of 0.125W and comes in an 0805 package.
✓ Total Stock: 331,211 pcs
$ Price Range: $0.05

CRG0805F10R Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
330,000 pcs
On Request
330000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,200 pcs
$0.03 ℹ
Qty Price
0+ 0.03
1200 pcs $0.03
QtyPrice
0+ 0.03
1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRG0805F10R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Technology
Temperature Coefficient
Termination Style
Tolerance
Voltage
Width
View Similar Products (0)

CRG0805F10R Description

Short technical summary and product information.

The TE Connectivity CRG0805F10R is a general-purpose, thick film surface mount resistor designed for industrial applications and general use. It features a resistance value of 10 Ohms with a tight tolerance of ±1% and a power rating of 0.125W.



This resistor is housed in an industry-standard 0805 package, measuring 2.00mm in length and 1.25mm in width. It operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±200 ppm/°C. The component is suitable for high-frequency operations due to its short lead structure and low capacitance.



Constructed with precious metal terminations printed on a ceramic base, the resistive element is screen-printed, followed by a passivation layer. The resistor is precisely trimmed to its tolerance using a laser. The termination style is solder, and the terminal finish is Matte Sn.

CRG0805F10R Quick Information

Product Type: Thick Film Surface Mount Resistor
Series: CRG0805
Canonical Name: TE Connectivity CRG0805F10R 10 Ohm ±1% 0.125W Thick Film Surface Mount Resistor
Subcategory: Surface Mount Resistor

CRG0805F10R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRG0805F10R Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRG0805F10R Features

  • 10 Ohm resistance with ±1% tolerance.
  • 0.125W power rating.
  • 0805 package size.
  • Thick film technology.
  • Wide operating temperature range.

CRG0805F10R Applications

  • Used in signal filtering circuits
  • Ideal for compact electronic devices
  • Suitable for automotive and industrial applications
  • Applied in consumer electronics

CRG0805F10R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRG0805F10R resistor?

The resistance value is 10 Ohms.

What is the tolerance of the TE Connectivity CRG0805F10R resistor?

The tolerance is ±1%.

What is the power rating of this surface mount resistor?

The power rating is 0.125W.

What is the package size for the CRG0805F10R?

The package size is 0805.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What is the temperature coefficient of the CRG0805F10R?

The temperature coefficient is ±200 ppm/°C.
