| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
135,000 pcs
|
135000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

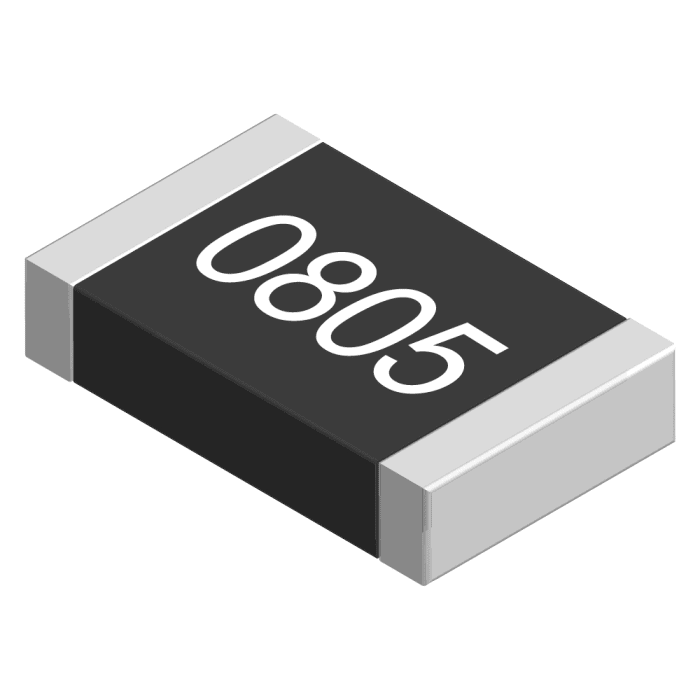

The TE Connectivity CRG0805F100R is a general-purpose, thick film surface mount resistor from the CRG series. It features a resistance value of 100 Ohms with a tight tolerance of ±1% and a power rating of 0.125W. The resistor is designed for industrial applications and general-purpose use, offering high frequency operation due to its short lead structure and low capacitance.
This component is housed in an industry-standard 0805 package, measuring 2mm in length and 1.25mm in width. It operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±100ppm/°C. The termination style is solder, and it is supplied on tape and reel.
Key electrical specifications include a voltage rating of 150V and a temperature coefficient of ±200 ppm/°C. The construction involves precious metal terminations printed on a ceramic base, with the resistive element screen printed and laser-trimmed to tolerance. The terminal finish is Matte Sn.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 Ohms.
The tolerance is ±1%.
The power rating is 0.125W.
The operating temperature range is -55°C to +155°C.
The package size is 0805.
The temperature coefficient is ±100ppm/°C.
The voltage rating is 150V.
