| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Inductance | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

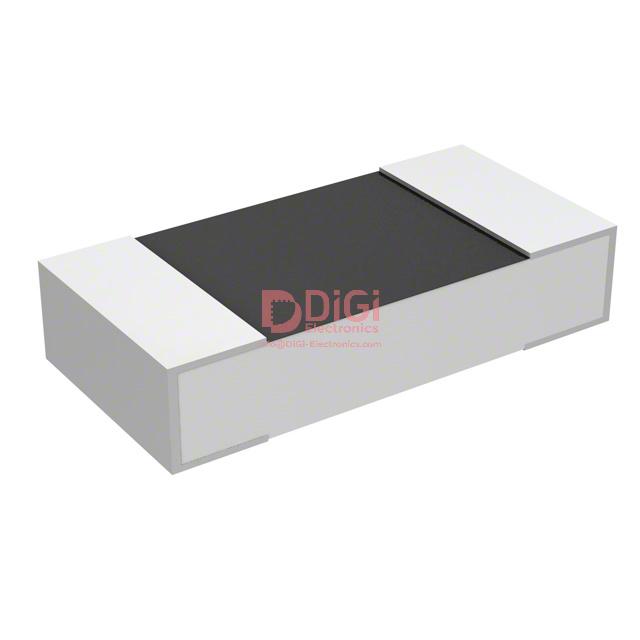

This Bourns CRF1206-FZ-R005ELF is a high-power current sense chip resistor designed for demanding applications. It features a low resistance value of 5 mOhms with a tight tolerance of ±1% and a power rating of 1W at 70°C. The operating temperature range is -55°C to +170°C.
The component is housed in a 1206 (3216 Metric) surface-mount package. Its construction utilizes a metal element, providing high power density and low thermal EMF. The resistor is rated for automotive applications, being AEC-Q200 compliant, and also offers moisture resistance.
Key electrical characteristics include a temperature coefficient of ±50ppm/°C and an inductance value of less than 5nH. The resistor is suitable for applications such as power supplies and stepper motor drives, where accurate current monitoring is critical.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The compact size and robust construction make it ideal for integration into various electronic designs requiring precise current sensing capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 5 mOhms.
The power rating is 1W at 70°C.
The tolerance is ±1%.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to +170°C.
The resistor is available in the 1206 (3216 Metric) package size.
Yes, the CRF1206-FZ-R005ELF resistor is AEC-Q200 compliant.
