| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Height | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Ripple & Noise (max.) | |
| Standard Number | |
| Storage Temperature | |
| Switching Frequency | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Output 1 | |
| Width |

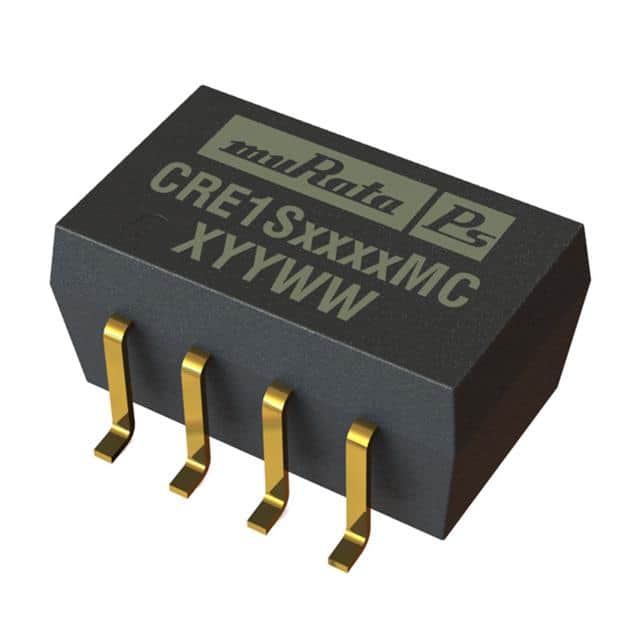

The CRE1S0505MC-R is a surface-mount isolated DC-DC converter from Murata Power Solutions, part of the CRE1 series. It delivers a single 5V output at up to 200mA from a nominal 5V input (4.5V to 5.5V range), with a maximum output power of 1W. The converter features 1000VDC isolation (flash tested for 1 second) and operates at a typical switching frequency of 80kHz. Typical efficiency is 68%, with maximum ripple and noise of 85mV p-p. The device is housed in a compact 14-SMD module with 5 leads, measuring 12.7mm x 7.7mm x 6.6mm, and is designed for commercial ITE (Information Technology Equipment) applications. Operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.85 | $3.85 |
| 10+ | $3.62 | $3.62 |
| 100+ | $3.43 | $3.43 |
| 1,000+ | $3.24 | $3.24 |
| 10,000+ | $3.04 | $3.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V nominal.
The maximum output current is 200mA.
The input voltage range is 4.5V to 5.5V.
The isolation voltage is 1000VDC, flash tested for 1 second.
The operating temperature range is -40°C to 85°C.
It comes in a 14-SMD Module, 5 Leads surface mount package.
RoHS3 compliance is indicated but unverified.
