| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
730 pcs
|
730 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

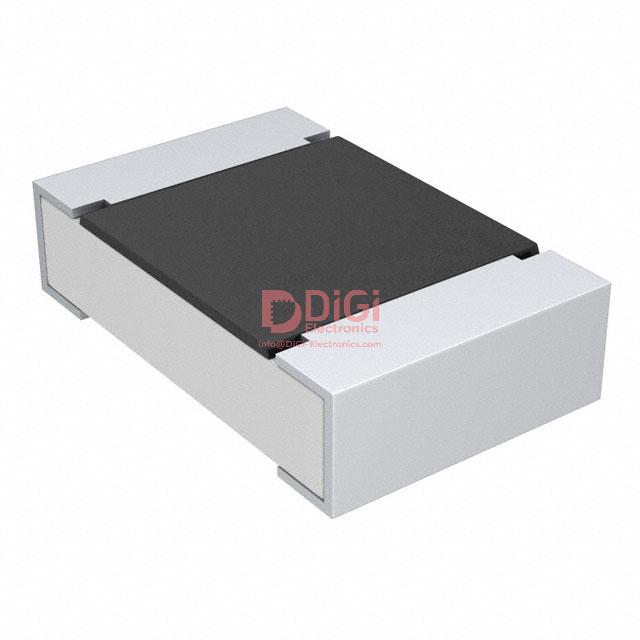

The Vishay Dale CRCW0805680KJNEA is a standard thick film chip resistor designed for high reliability and stability in modern electronics. It features a resistance of 680 kΩ with a tolerance of ±5% and a power rating of 0.125W (1/8W).
This resistor operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±200ppm/°C. It is qualified to AEC-Q200 standards, making it suitable for automotive applications.
The component comes in an 0805 (2012 Metric) package, measuring 2.00mm x 1.25mm, and is designed for surface mount technology. Its thick film composition ensures stability under various environmental conditions.
Typical applications include automotive, telecommunications, and industrial electronics where consistent performance is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 680 kΩ.
The power rating is 0.125W, or 1/8W.
The operating temperature range is -55°C to +155°C.
Yes, the CRCW0805680KJNEA resistor is AEC-Q200 qualified.
The package size is 0805 (2012 Metric).
