| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Height | |
| Insulation Resistance | |
| Length | |
| Limiting Element Voltage | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Weight | |
| Width |

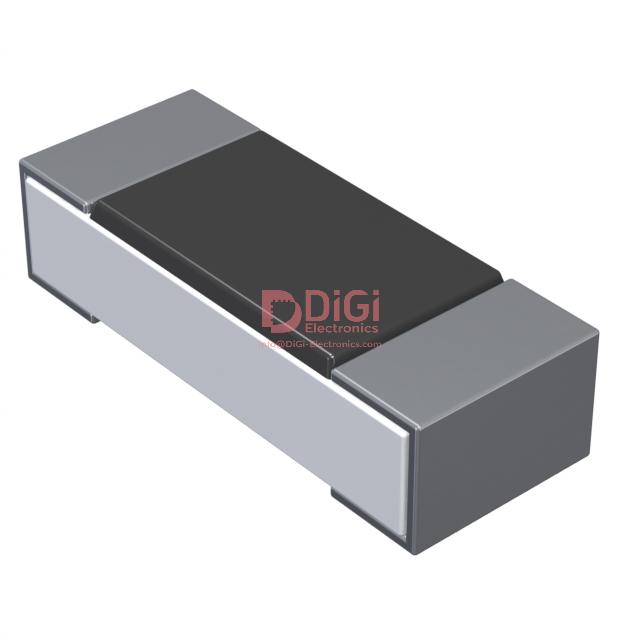

This Vishay Dale CRCW0805560RFKEAC is a surface mount chip resistor from the CRCW0805 series. It features a thick film composition, offering a resistance value of 560 Ohms with a tight tolerance of ±1%. The component is rated for 0.125W (1/8W) of power dissipation at 70°C and can operate within a wide temperature range of -55°C to 155°C.
The resistor is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It has 2 terminations and a temperature coefficient of ±100ppm/°C. The high insulation resistance and low failure rate make it suitable for various commercial applications.
Designed for surface mounting, this resistor is ideal for automated assembly processes. Its robust construction and stable performance characteristics make it a reliable choice for general-purpose electronic circuits where precise resistance values are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 560 Ohms.
The tolerance is ±1%.
The power rating is 0.125W at 70°C.
The operating temperature range is -55°C to 155°C.
The package size is 0805 (2012 Metric).
The temperature coefficient is ±100ppm/°C.
