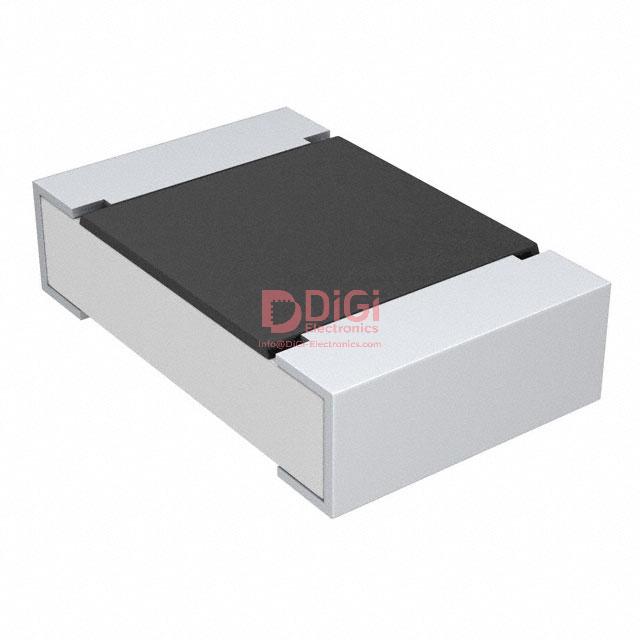

CRCW0805523RFKEA The Vishay Dale CRCW0805523RFKEA is a thick film chip resistor with a resistance of 523 Ohms and a tolerance of ±1%. It is rated for 0.125W and comes in an 0805 package.
Mfr Part #:

CRCW0805523RFKEA

Available from 2 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale CRCW0805523RFKEA is a thick film chip resistor with a resistance of 523 Ohms and a tolerance of ±1%. It is rated for 0.125W and comes in an 0805 package.
✓ Total Stock: 1,436 pcs
$ Price Range: $0.05

CRCW0805523RFKEA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
718 pcs
On Request
718 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
718 pcs
On Request
718 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRCW0805523RFKEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CRCW0805523RFKEA Description

Short technical summary and product information.

The Vishay Dale CRCW0805523RFKEA is a standard thick film chip resistor designed for applications requiring high reliability and stability. It features a resistance value of 523 Ohms with a tight tolerance of ±1% and a power rating of 0.125W (1/8W).



This resistor operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±100ppm/°C. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.50mm. Its thick film composition ensures robust performance.



Designed for modern electronics, the CRCW0805523RFKEA is AEC-Q200 qualified, making it suitable for automotive, telecommunications, and industrial applications where stability under various environmental conditions is critical. The stability specification indicates a maximum resistance change of ≤1% after 1000 hours at rated power at 70°C.

CRCW0805523RFKEA Quick Information

Product Type: Chip Resistor - Surface Mount
Series: CRCW
Canonical Name: Vishay Dale CRCW0805523RFKEA Thick Film Chip Resistor, 523 Ohm, 1% Tolerance, 0.125W, 0805 Package
Subcategory: Chip Resistor - Surface Mount

CRCW0805523RFKEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRCW0805523RFKEA Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRCW0805523RFKEA Features

  • Thick film chip resistor for reliability.
  • 523 Ohm resistance with ±1% tolerance.
  • Rated for 0.125W power dissipation.
  • 0805 package for surface mounting.
  • AEC-Q200 qualified for automotive use.

CRCW0805523RFKEA Applications

  • Suitable for automotive applications.
  • Used in telecommunication systems.
  • Ideal for industrial electronics.
  • High stability in harsh conditions.

CRCW0805523RFKEA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRCW0805523RFKEA resistor?

The resistance value is 523 Ohms.

What is the tolerance of the CRCW0805523RFKEA resistor?

The tolerance is ±1%.

What is the power rating of the CRCW0805523RFKEA resistor?

The power rating is 0.125W, or 1/8W.

What is the temperature coefficient of the CRCW0805523RFKEA resistor?

The temperature coefficient is ±100ppm/°C.

What is the operating temperature range for the CRCW0805523RFKEA resistor?

The operating temperature range is -55°C to +155°C.

What package size is the CRCW0805523RFKEA resistor?

The package size is 0805 (2012 Metric).

Is the CRCW0805523RFKEA resistor AEC-Q200 qualified?

Yes, the CRCW0805523RFKEA resistor is AEC-Q200 qualified.
