| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

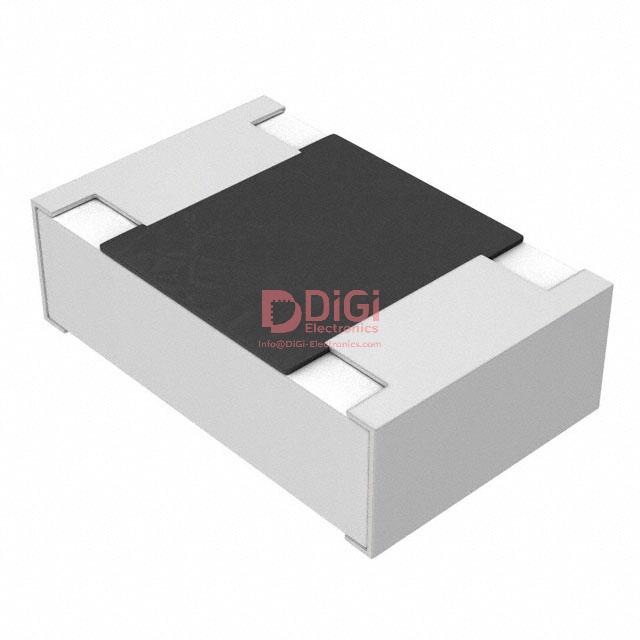

The Vishay Dale CRCW0805510KJNEA is a surface-mount thick film chip resistor designed for reliability and stability in modern electronics. It features a resistance of 510 kΩ with a tolerance of ±5% and a power rating of 0.125W (1/8W) at 70°C. The operating temperature range is -55°C to +155°C.
This resistor is built in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width. It has two terminations and a height of 0.50mm. The component is AEC-Q200 qualified, indicating its suitability for automotive applications, and also features anti-sulfur properties.
Key electrical specifications include a temperature coefficient of ±200ppm/°C and a maximum operating voltage of 75V DC. The datasheet specifies a maximum resistance change of ≤1% after 1000 hours at rated power and temperature. The insulation voltage is rated at 100V for 1 minute.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 510 kΩ.
The power rating is 0.125W (1/8W).
The tolerance is ±5%.
The operating temperature range is -55°C to +155°C.
Yes, this resistor is AEC-Q200 qualified.
The package size is 0805 (2012 Metric).
