| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,567 pcs
|
1567 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,567 pcs
|
1567 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

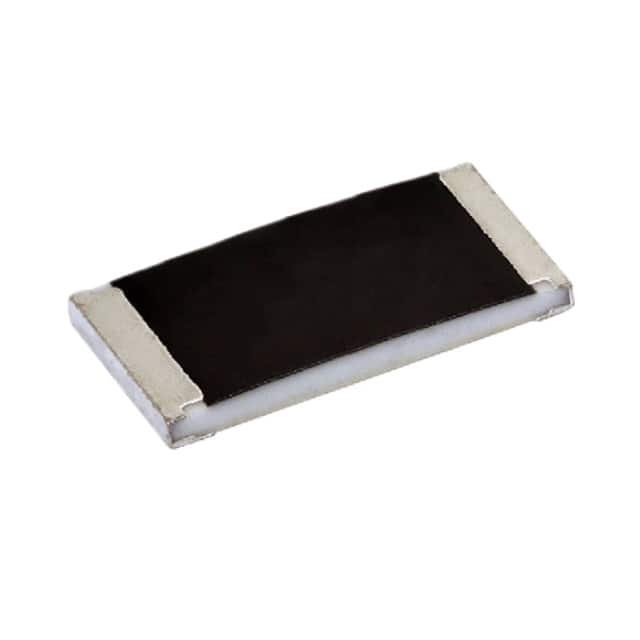

The Vishay Dale CRCW08053R30FKEA is a surface mount thick film chip resistor designed for high reliability and stability in modern electronics. It offers a resistance value of 3.3 Ohms with a tight tolerance of ±1% and a power rating of 0.125W (1/8W) at 70°C.
This resistor operates within a wide temperature range of -55°C to +155°C and has a maximum resistance change of ≤1% after 1000 hours at rated power. It is AEC-Q200 qualified, making it suitable for automotive applications. The component comes in an 0805 (2012 Metric) package with dimensions of 2.00mm x 1.25mm and a height of 0.50mm.
Key specifications include a maximum operating voltage of 75V and a temperature coefficient of ±100ppm/°C. The Vishay Dale CRCW08053R30FKEA is ideal for applications requiring precision and stability, such as in automotive, telecommunications, and industrial sectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CRCW08053R30FKEA resistor has a resistance value of 3.3 Ohms with a tolerance of ±1%.
The power rating for the CRCW08053R30FKEA resistor is 0.125W (1/8W) at 70°C.
The CRCW08053R30FKEA resistor is in an 0805 package with dimensions of 2.00mm x 1.25mm and a height of 0.50mm.
The operating temperature range for the CRCW08053R30FKEA resistor is -55°C to +155°C.
Yes, the CRCW08053R30FKEA resistor is AEC-Q200 qualified.
The temperature coefficient of the CRCW08053R30FKEA resistor is ±100ppm/°C.
