Mfr Part #:

CRCW0805392KFKEA

Mfr Name: Vishay

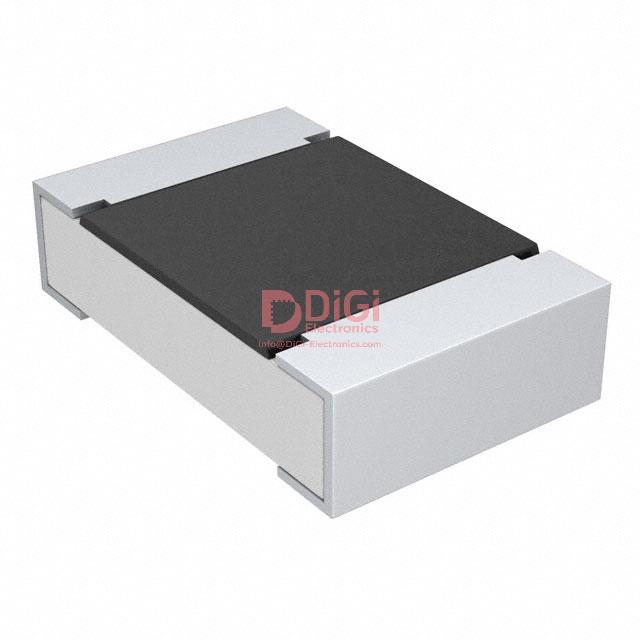

The Vishay Dale CRCW0805392KFKEA is a thick film chip resistor with 392 kΩ resistance and ±1% tolerance. It is rated for 1/8W power and features AEC-Q200 qualification.

✓ Total Stock: 9,696 pcs

$ Price Range: $0.05

CRCW0805392KFKEA Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	4,848 pcs On Request	4848 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	4,848 pcs On Request	4848 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

CRCW0805392KFKEA Description

Short technical summary and product information.

The Vishay Dale CRCW0805392KFKEA is a surface mount chip resistor designed for applications requiring high reliability and stability. It features a resistance of 392 kΩ with a tight tolerance of ±1% and a power rating of 0.125W (1/8W).

This resistor operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±100ppm/°C. It is built with thick film technology and comes in an 0805 package size (2012 Metric).

The CRCW0805392KFKEA is AEC-Q200 qualified, making it suitable for automotive applications. Its stability under various environmental conditions, with a maximum resistance change of ≤1% after 1000 hours at rated power and 70°C, ensures dependable performance.

Key specifications include an operating voltage of up to 200V and an insulation voltage of 300V. The component measures 2.00mm in length and 1.25mm in width.

CRCW0805392KFKEA Quick Information

Product Type: Chip Resistor - Surface Mount

Series: CRCW

Canonical Name: Vishay Dale CRCW0805392KFKEA Thick Film Chip Resistor

Subcategory: Chip Resistor - Surface Mount

CRCW0805392KFKEA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CRCW0805392KFKEA Estimated Pricing

Qty	Low	High
1+	$0.05	$0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRCW0805392KFKEA Features

392 kΩ resistance with ±1% tolerance.
Rated for 0.125W (1/8W) power.
Operating temperature range -55°C to +155°C.
AEC-Q200 qualified for automotive use.
0805 package size for surface mounting.

CRCW0805392KFKEA Applications

Suitable for automotive applications.
Ideal for telecommunication circuits.
Used in industrial electronics.
High reliability applications.

CRCW0805392KFKEA FAQs

7 frequently asked questions generated from this part’s specifications.

What is the resistance value of the CRCW0805392KFKEA resistor?

The resistance value is 392 kΩ.

What is the tolerance of the CRCW0805392KFKEA resistor?

The tolerance is ±1%.

What is the power rating of the CRCW0805392KFKEA resistor?

The power rating is 0.125W, or 1/8W.

What is the temperature coefficient of the CRCW0805392KFKEA resistor?

The temperature coefficient is ±100ppm/°C.

What is the operating temperature range for the CRCW0805392KFKEA resistor?

The operating temperature range is -55°C to +155°C.

What package size is the CRCW0805392KFKEA resistor available in?

The resistor is available in the 0805 package size (2012 Metric).

Is the CRCW0805392KFKEA resistor AEC-Q200 qualified?

Yes, the CRCW0805392KFKEA resistor is AEC-Q200 qualified.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Vishay
Automotive Grade	AEC-Q200
Composition	Thick Film
Features	Automotive AEC-Q200
Height	0.50mm (0.020")
Length	2.00mm (0.079")
Number of Terminations	2
Operating Temperature	-55°C ~ 155°C
Operating Voltage	200 V
Power (Watts)	0.125W, 1/8W
Power Rating	0.125W, 1/8W
Ratings	AEC-Q200
Resistance	392 kΩ
Supplier Device Package	0805
Tape & Reel	True
Temperature Coefficient	±100ppm/°C
Tolerance	±1%
Width	1.25mm (0.049")
