| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,693 pcs
|
4693 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

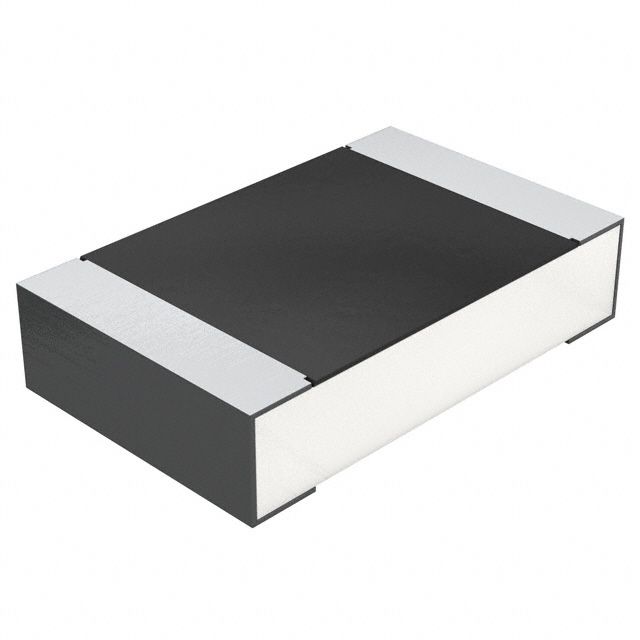

The Vishay Dale CRCW0805332RFKTA is a lead (Pb)-bearing thick film chip resistor designed for applications requiring high reliability and stability. It features a resistance value of 332 Ohms with a tight tolerance of ±1% and a power rating of 0.125W (1/8W).
This resistor operates across a wide temperature range of -55°C to +155°C, with a permissible film temperature of up to 155°C. The temperature coefficient is ±100ppm/°C. It is qualified to AEC-Q200 standards, making it suitable for automotive applications.
The component comes in an 0805 (2012 Metric) package size, measuring 2.00mm in length and 1.25mm in width, with a height of 0.50mm. Its thick film composition ensures stability under various environmental conditions, with a maximum resistance change of ≤1% after 1000 hours at rated power at 70°C. The failure rate is observed to be ≤ 0.1 x 10-9/h.
Typical applications include military and industrial electronics where lead-bearing terminations are mandatory. The stability and reliability make it a suitable choice for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 332 Ohms.
The tolerance is ±1%.
The power rating is 0.125W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The package type is 0805 (2012 Metric).
Yes, the resistor is AEC-Q200 qualified.
