| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,515 pcs
|
4515 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

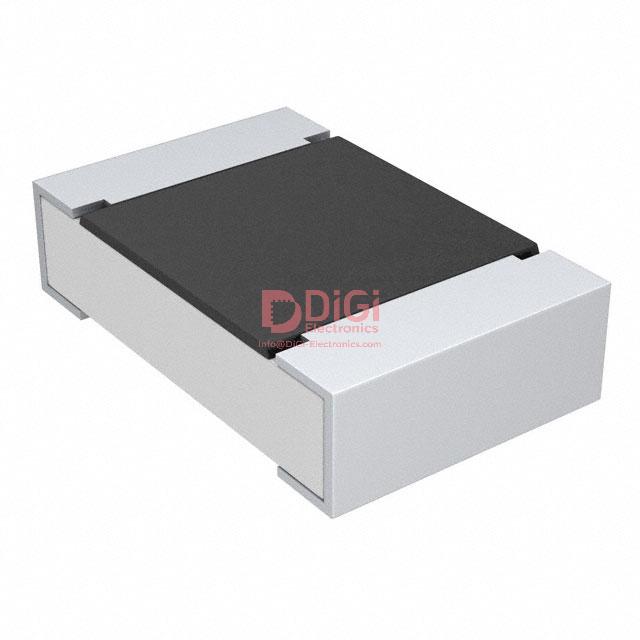

The Vishay Dale CRCW0805301KFKTA is a surface mount chip resistor designed for industrial and military applications. It features a thick film composition and a resistance value of 301 kΩ with a tight tolerance of ±1%. The power rating is 0.125W (1/8W), and it operates within a temperature range of -55°C to +155°C.
This resistor is qualified to AEC-Q200 standards, indicating its suitability for automotive and harsh environmental conditions. The component comes in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width. Its stability at different environmental conditions is rated at ΔR/R ≤ 1% after 1000 hours at rated power at 70°C.
Key specifications include a temperature coefficient of ±100ppm/°C and a maximum permissible film temperature of 155°C. The insulation voltage is rated at a minimum of 75V for 1 minute. These characteristics make it a reliable choice for various electronic circuits requiring stable performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 301 kΩ.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to +155°C.
The package size is 0805 (2012 Metric).
Yes, the CRCW0805301KFKTA resistor is AEC-Q200 qualified.
