| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Failure Rate | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

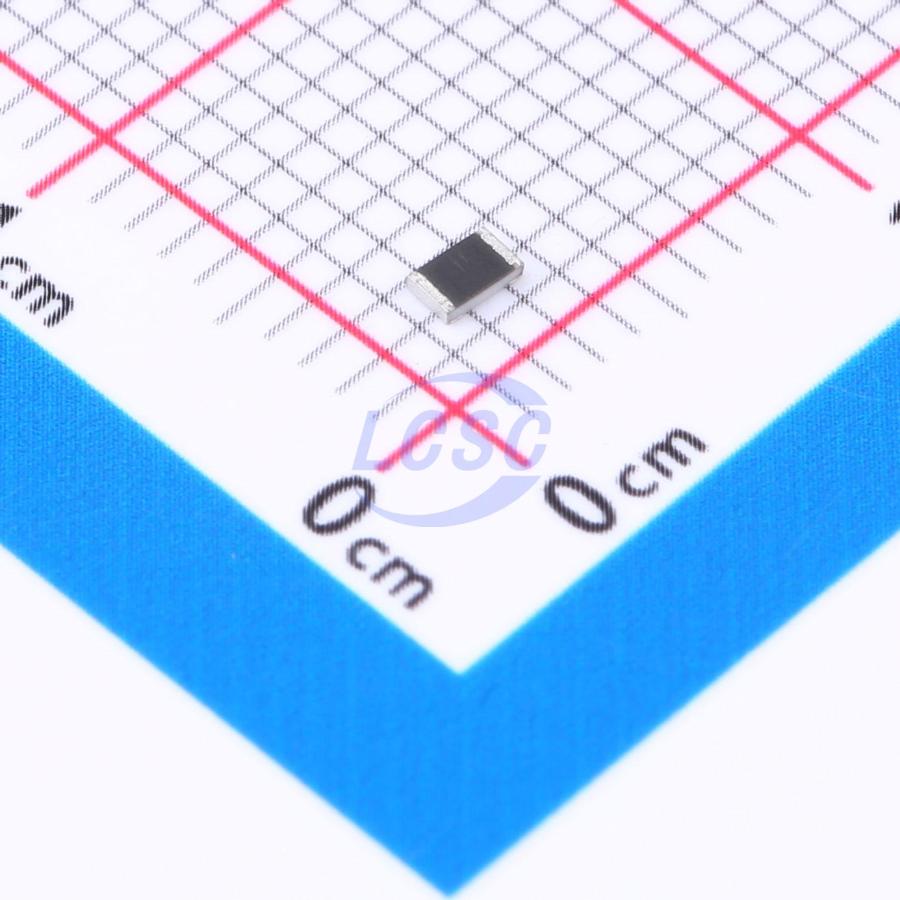

The Vishay Dale CRCW0805300KFKEA is a standard thick film chip resistor suitable for various electronic applications requiring high reliability and stability. This component features a resistance value of 300 kΩ with a tight tolerance of ±1% and a power rating of 0.125W (1/8W).
Operating within a temperature range of -55°C to +155°C, this resistor is built to withstand diverse environmental conditions, offering a maximum resistance change of ≤1% after 1000 hours at rated power and 70°C. It is AEC-Q200 qualified, making it suitable for automotive applications.
The resistor comes in an 0805 (2012 Metric) package with surface mount termination. Its dimensions are 2.00mm in length, 1.25mm in width, and 0.50mm in height. The thick film composition ensures stable performance.
Typical applications include automotive, industrial, and telecommunication sectors where consistent performance is critical. The component's stability and reliability make it a dependable choice for demanding designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 300 kΩ.
The tolerance is ±1%.
The power rating is 0.125W (1/8W).
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to +155°C.
Yes, the CRCW0805300KFKEA resistor is AEC-Q200 qualified.
The package size is 0805 (2012 Metric).
