| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width |

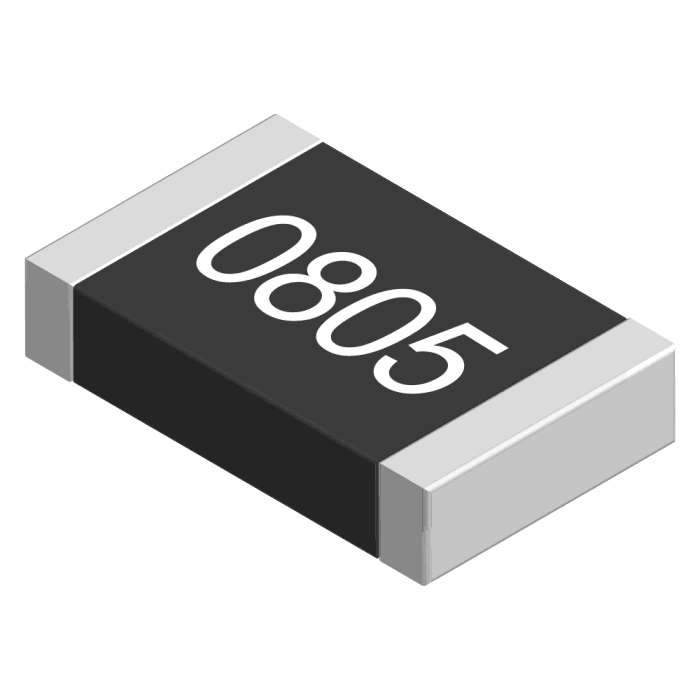

The Vishay Dale CRCW0805249KFKEA is a standard thick film chip resistor designed for high reliability and stability in modern electronics. It features a resistance value of 249 kΩ with a tight tolerance of ±1% and a power rating of 0.125W.
This resistor operates across a wide temperature range from -55°C to +155°C, with a permissible film temperature of 155°C. Its stability is noted as ΔR/R ≤ 1% after 1000 hours at 70°C. The component is AEC-Q200 qualified, making it suitable for automotive applications.
The 0805 package size (2012 Metric) with surface mount termination style is ideal for automated assembly processes. The thick film composition ensures robust performance. The resistor has a temperature coefficient of ±100 ppm/°C and an operating voltage of up to 200V.
Applications for this resistor include automotive, industrial, and telecommunication equipment. Its construction with a high-quality ceramic and metal glaze, along with pure tin solder contacts, allows for compatibility with both leaded and lead-free soldering processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 249 kΩ.
The tolerance is ±1%.
The power rating is 0.125W.
The temperature coefficient is ±100 ppm/°C.
The operating temperature range is -55°C to 155°C.
The package size is 0805.
Yes, the resistor is AEC-Q200 qualified.
