| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,445 pcs
|
1445 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,133 pcs
|
1133 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

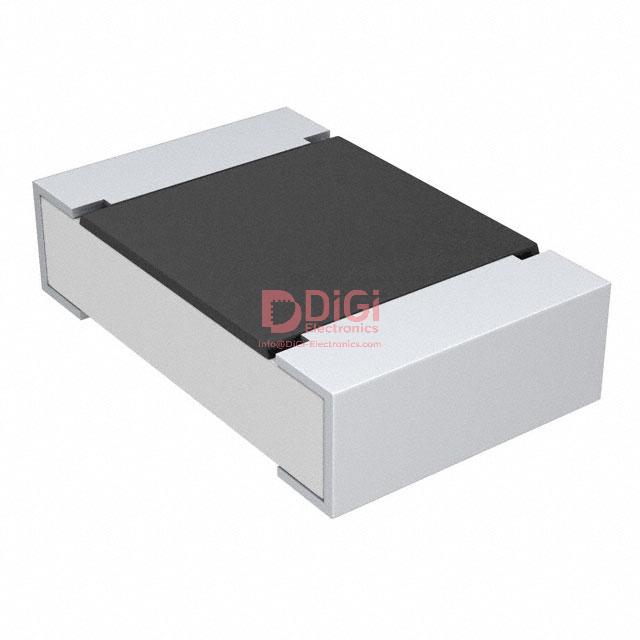

The Vishay Dale CRCW080522R0FKEA is a surface mount thick film chip resistor designed for applications requiring high reliability and stability. It features a resistance value of 22 Ohms with a tight tolerance of ±1% and a power rating of 0.125W (1/8W).
This resistor operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±100ppm/°C. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width.
Designed for demanding environments, the CRCW080522R0FKEA is AEC-Q200 qualified, making it suitable for automotive applications. Its thick film composition ensures stability under various environmental conditions. The maximum operating voltage is 150V DC, and the insulation voltage is 200V.
Key specifications include a maximum film temperature of 155°C and a stability of ≤1% after 1000 hours at rated power at 70°C. The resistor is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 Ohms.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to +155°C.
The package size is 0805 (2012 Metric).
Yes, the CRCW080522R0FKEA resistor is AEC-Q200 qualified.
