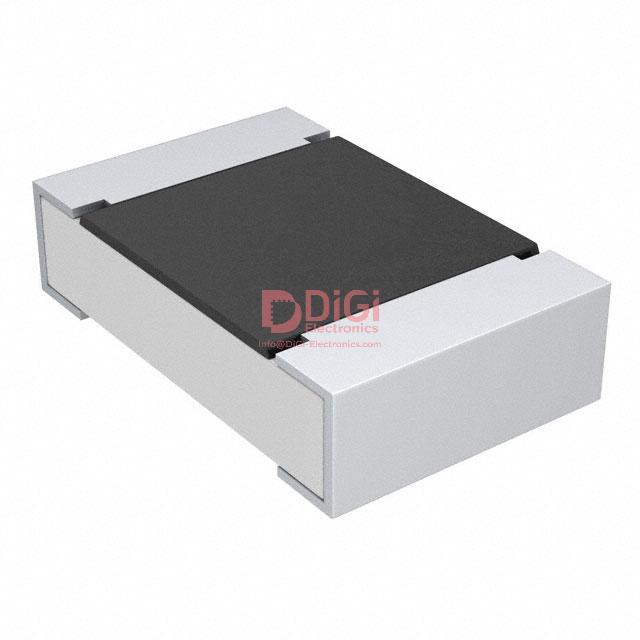

CRCW080522K1FKEA The Vishay Dale CRCW080522K1FKEA is a thick film chip resistor with a resistance of 22.1 kOhms and a tolerance of ±1%. It is rated for 0.125W and is AEC-Q200 qualified.
Mfr Part #:

CRCW080522K1FKEA

Available from 5 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale CRCW080522K1FKEA is a thick film chip resistor with a resistance of 22.1 kOhms and a tolerance of ±1%. It is rated for 0.125W and is AEC-Q200 qualified.
✓ Total Stock: 14,146 pcs
$ Price Range: $0.05

CRCW080522K1FKEA Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRCW080522K1FKEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Resistance Tolerance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CRCW080522K1FKEA Description

Short technical summary and product information.

The Vishay Dale CRCW080522K1FKEA is a surface mount thick film chip resistor designed for applications requiring high reliability and stability. It features a resistance value of 22.1 kOhms with a tight tolerance of ±1% and a power rating of 0.125W (1/8W).



This resistor operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±100ppm/°C. It is built with a thick film composition and is suitable for various electronic fields, including automotive and telecommunications, due to its AEC-Q200 qualification.



The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.50mm. It is designed for surface mounting.



Key specifications include a maximum operating voltage of 75V and a maximum permissible film temperature of 155°C. The resistor also offers a minimum insulation voltage of 100V.

CRCW080522K1FKEA Quick Information

Product Type: Chip Resistor - Surface Mount
Series: CRCW
Canonical Name: Vishay Dale CRCW080522K1FKEA Thick Film Chip Resistor
Subcategory: Surface Mount Resistor

CRCW080522K1FKEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRCW080522K1FKEA Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRCW080522K1FKEA Features

  • 22.1 kOhms resistance with ±1% tolerance.
  • 0.125W power rating at 70°C.
  • AEC-Q200 qualified for automotive use.
  • Operating temperature range -55°C to +155°C.
  • 0805 (2012 Metric) surface mount package.

CRCW080522K1FKEA Applications

  • Suitable for automotive applications.
  • Used in telecommunication systems.
  • Ideal for industrial electronics.
  • High reliability and stability required.
  • General purpose thick film resistor.

CRCW080522K1FKEA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRCW080522K1FKEA resistor?

The resistance value is 22.1 kOhms.

What is the tolerance of the CRCW080522K1FKEA resistor?

The tolerance is ±1%.

What is the power rating of the CRCW080522K1FKEA resistor?

The power rating is 0.125W (1/8W).

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to +155°C.

What is the package size of the CRCW080522K1FKEA?

The package size is 0805 (2012 Metric).

Is the CRCW080522K1FKEA resistor AEC-Q200 qualified?

Yes, this resistor is AEC-Q200 qualified.
