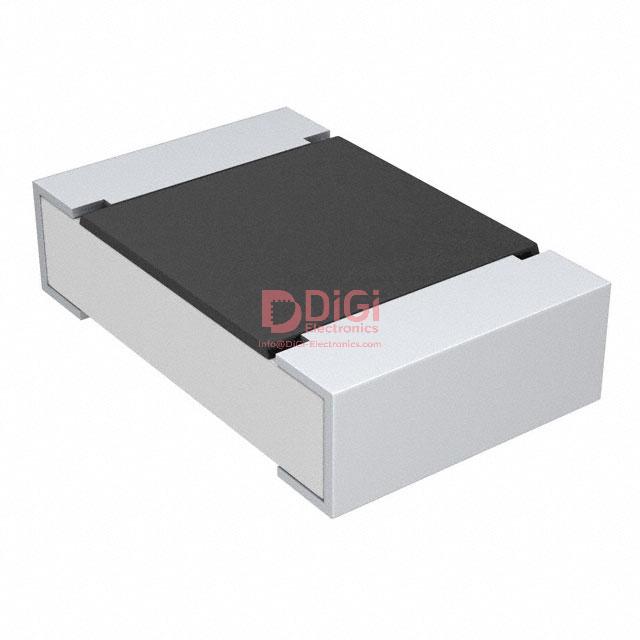

CRCW080522K0JNEA The Vishay Dale CRCW080522K0JNEA is a 22 kΩ thick film chip resistor with a ±5% tolerance and a 0.125W power rating. It is designed for surface mount applications.
Mfr Part #:

CRCW080522K0JNEA

Available from 4 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale CRCW080522K0JNEA is a 22 kΩ thick film chip resistor with a ±5% tolerance and a 0.125W power rating. It is designed for surface mount applications.
✓ Total Stock: 10,612 pcs
$ Price Range: $0.05

CRCW080522K0JNEA Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRCW080522K0JNEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Operating Temperature Range
Operating Voltage
Power (Watts)
Ratings
Resistance
Resistance Tolerance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CRCW080522K0JNEA Description

Short technical summary and product information.

This Vishay Dale CRCW080522K0JNEA is a standard thick film chip resistor suitable for various electronic applications requiring high reliability and stability. It features a resistance of 22 kΩ with a tolerance of ±5% and a power rating of 0.125W (1/8W) at 70°C.



The resistor operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±200ppm/°C. It is qualified to AEC-Q200 standards, making it suitable for automotive applications.



The component comes in an 0805 (2012 Metric) package size, measuring 2.00mm in length, 1.25mm in width, and 0.50mm in height. It is designed for surface mounting and has 2 terminations.



Typical applications include automotive, telecommunications, and industrial fields where stability under different environmental conditions is a concern. The maximum resistance change after 1000 hours at rated power is less than or equal to 1%.

CRCW080522K0JNEA Quick Information

Product Type: Chip Resistor - Surface Mount
Series: CRCW
Canonical Name: Vishay Dale CRCW080522K0JNEA Thick Film Chip Resistor
Subcategory: Surface Mount

CRCW080522K0JNEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRCW080522K0JNEA Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRCW080522K0JNEA Features

  • 22 kOhm resistance with 5% tolerance.
  • 0.125W power rating at 70C.
  • AEC-Q200 qualified for automotive use.
  • Operates from -55C to 155C.
  • 0805 package for surface mounting.

CRCW080522K0JNEA Applications

  • Suitable for automotive applications.
  • Used in telecommunication systems.
  • Ideal for industrial electronics.
  • High reliability applications.

CRCW080522K0JNEA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRCW080522K0JNEA resistor?

The resistance value is 22 kΩ.

What is the tolerance of the CRCW080522K0JNEA resistor?

The tolerance is ±5%.

What is the power rating for the CRCW080522K0JNEA resistor?

The power rating is 0.125W (1/8W).

What is the temperature coefficient of the CRCW080522K0JNEA resistor?

The temperature coefficient is ±200ppm/°C.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to +155°C.

What package size is the CRCW080522K0JNEA resistor?

The package size is 0805 (2012 Metric).

Is the CRCW080522K0JNEA resistor AEC-Q200 qualified?

Yes, the resistor is AEC-Q200 qualified.
