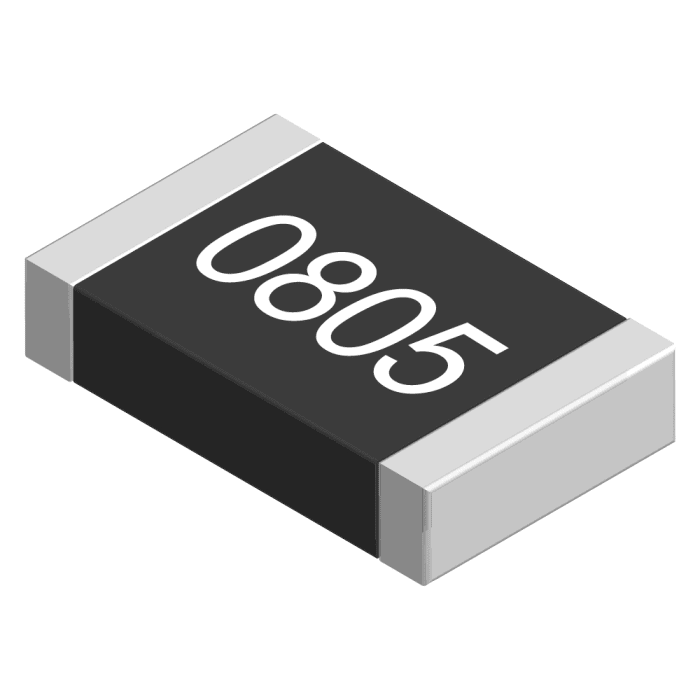

CRCW080513K7FKEA The Vishay Dale CRCW080513K7FKEA is a thick film surface mount resistor with a resistance of 13.7 kΩ and a tolerance of ±1%. It has a power rating of 0.125W.
Mfr Part #:

CRCW080513K7FKEA

Available from 2 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale CRCW080513K7FKEA is a thick film surface mount resistor with a resistance of 13.7 kΩ and a tolerance of ±1%. It has a power rating of 0.125W.
✓ Total Stock: 10,122 pcs
$ Price Range: $0.05

CRCW080513K7FKEA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5,061 pcs
On Request
5061 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
5,061 pcs
On Request
5061 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRCW080513K7FKEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Q200 Qualified
Automotive Grade
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Operating Temperature Range
Operating Voltage
Power (Watts)
Ratings
Resistance
Resistance Tolerance
Stability
Supplier Device Package
Temperature Coefficient
Termination Style
Tolerance
Width
View Similar Products (0)

CRCW080513K7FKEA Description

Short technical summary and product information.

The Vishay Dale CRCW080513K7FKEA is a standard thick film chip resistor designed for high reliability and stability in modern electronics. It features a resistance value of 13.7 kΩ with a tight tolerance of ±1% and a power rating of 0.125W.



This resistor operates within a wide temperature range of -55°C to +155°C and has a temperature coefficient of ±100 ppm/°C. It is AEC-Q200 qualified, making it suitable for demanding applications in the automotive, telecommunications, and industrial sectors.



The component is housed in an 0805 package size, measuring 2.00mm in length and 1.25mm in width, with a height of 0.50mm. It is designed for surface mounting and features solder terminations. The thick film construction ensures excellent stability under various environmental conditions, with a maximum resistance change of ≤1% after 1000 hours at rated power at 70°C.

CRCW080513K7FKEA Quick Information

Product Type: Resistor
Series: CRCW
Canonical Name: Vishay Dale CRCW Series Thick Film Surface Mount Resistor 13.7 kΩ ±1% 0.125W
Subcategory: Surface Mount Resistor

CRCW080513K7FKEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRCW080513K7FKEA Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRCW080513K7FKEA Features

  • Thick film construction for stability.
  • 13.7 kΩ resistance with ±1% tolerance.
  • 0.125W power rating.
  • Wide -55°C to +155°C operating temperature.
  • AEC-Q200 qualified for automotive use.

CRCW080513K7FKEA Applications

  • Suitable for automotive applications.
  • Ideal for telecommunication equipment.
  • Used in industrial electronics.
  • General purpose surface mount circuits.

CRCW080513K7FKEA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the CRCW080513K7FKEA resistor?

The resistance of the CRCW080513K7FKEA resistor is 13.7 kΩ.

What is the tolerance of this Vishay Dale resistor?

The tolerance of the CRCW080513K7FKEA resistor is ±1%.

What is the power rating for the CRCW080513K7FKEA?

The power rating for the CRCW080513K7FKEA resistor is 0.125W (1/8W).

What is the operating temperature range for this surface mount resistor?

The operating temperature range for this resistor is -55°C to +155°C.

What is the temperature coefficient of the CRCW080513K7FKEA?

The temperature coefficient of the CRCW080513K7FKEA resistor is ±100 ppm/°C.

Is the CRCW080513K7FKEA AEC-Q200 qualified?

Yes, the CRCW080513K7FKEA resistor is AEC-Q200 qualified.

What package size is the CRCW080513K7FKEA resistor?

The CRCW080513K7FKEA resistor is in an 0805 package size.
