| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,142 pcs
|
4142 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,142 pcs
|
4142 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

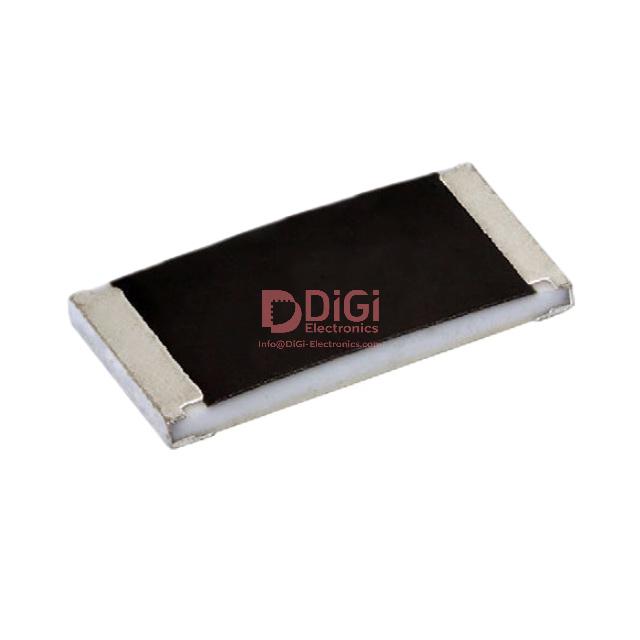

This Vishay Dale CRCW0805124KFKEA is a surface mount thick film chip resistor designed for reliability and stability in electronic applications. It features a resistance value of 124 kΩ with a tight tolerance of ±1% and a power rating of 1/8W (0.125W).
The resistor operates across a wide temperature range of -55°C to +155°C, with a temperature coefficient of ±100ppm/°C. Its compact 0805 (2012 Metric) package measures 2.00mm in length and 1.25mm in width, with a height of 0.50mm, making it suitable for dense PCB layouts.
Designed with 2 terminations, this component is AEC-Q200 qualified, indicating its suitability for automotive applications. The thick film construction ensures robust performance under various environmental conditions. The maximum permissible film temperature is 155°C, and it has a maximum operating voltage of 150V DC/AC RMS.
This resistor is supplied in tape and reel packaging, ideal for automated assembly processes. Its RoHS3 compliant status suggests adherence to environmental regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 124 kΩ.
The tolerance is ±1%.
The power rating is 1/8W (0.125W).
The operating temperature range is -55°C to +155°C.
The temperature coefficient is ±100ppm/°C.
The package size is 0805 (2012 Metric).
Yes, it is AEC-Q200 qualified.
