Mfr Part #:

CRCW080510R0JNEA

Mfr Name: Vishay

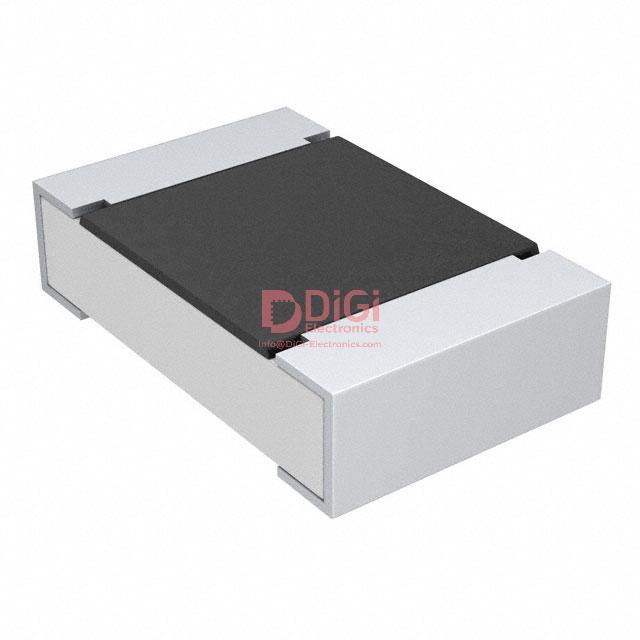

The Vishay Dale CRCW080510R0JNEA is a thick film chip resistor with 10 Ohms resistance and a 5% tolerance. It is rated for 1/8W power and features AEC-Q200 qualification.

✓ Total Stock: 5,200 pcs

$ Price Range: $0.05

CRCW080510R0JNEA Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	200 pcs On Request	200 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

CRCW080510R0JNEA Description

Short technical summary and product information.

The Vishay Dale CRCW080510R0JNEA is a standard thick film chip resistor designed for applications requiring high reliability and stability. It features a resistance of 10 Ohms with a tolerance of ±5% and a power rating of 0.125W (1/8W).

This resistor operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±200ppm/°C. It is qualified to the AEC-Q200 standard, making it suitable for automotive applications. The component comes in an 0805 package size (2012 Metric) with a height of 0.50mm.

Typical applications for this series include automotive, telecommunications, and industrial electronics where stability under different environmental conditions is crucial. The resistor's construction ensures a maximum resistance change of ≤1% after 1000 hours at rated power at 70°C.

CRCW080510R0JNEA Quick Information

Product Type: Chip Resistor - Surface Mount

Series: CRCW

Canonical Name: Vishay Dale CRCW080510R0JNEA Thick Film Chip Resistor

Subcategory: Surface Mount Resistor

CRCW080510R0JNEA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CRCW080510R0JNEA Estimated Pricing

Qty	Low	High
1+	$0.05	$0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRCW080510R0JNEA Features

10 Ohm resistance with ±5% tolerance.
Rated for 0.125W (1/8W) power.
AEC-Q200 qualified for automotive use.
Operating temperature range: -55°C to +155°C.
0805 package size for surface mounting.

CRCW080510R0JNEA Applications

Suitable for automotive applications.
Used in telecommunication systems.
Ideal for industrial electronics.
Designed for high reliability needs.

CRCW080510R0JNEA FAQs

7 frequently asked questions generated from this part’s specifications.

What is the resistance value of the CRCW080510R0JNEA resistor?

The resistance value is 10 Ohms.

What is the tolerance of the CRCW080510R0JNEA resistor?

The tolerance is ±5%.

What is the power rating of the CRCW080510R0JNEA resistor?

The power rating is 0.125W, or 1/8W.

What is the temperature coefficient of the CRCW080510R0JNEA resistor?

The temperature coefficient is ±200ppm/°C.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to +155°C.

What package size is the CRCW080510R0JNEA resistor in?

The resistor is in an 0805 package, which is 2012 Metric.

Is the CRCW080510R0JNEA resistor AEC-Q200 qualified?

Yes, the CRCW080510R0JNEA resistor is AEC-Q200 qualified.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Vishay
Automotive Grade	Yes
Composition	Thick Film
Features	Automotive AEC-Q200
Height	0.50mm (0.020")
Industrial Grade	Yes
Length	2.00mm (0.079")
Number of Terminations	2
Operating Temperature	-55°C ~ 155°C
Operating Temperature Range	-55 °C to +155 °C
Power (Watts)	0.125W, 1/8W
Power Rating	0.125W, 1/8W
Ratings	AEC-Q200
Resistance	10 Ω
Resistance Tolerance	± 5%
Supplier Device Package	0805
Temperature Coefficient	± 200 ppm/K
Tolerance	±5%
Width	1.25mm (0.049")
