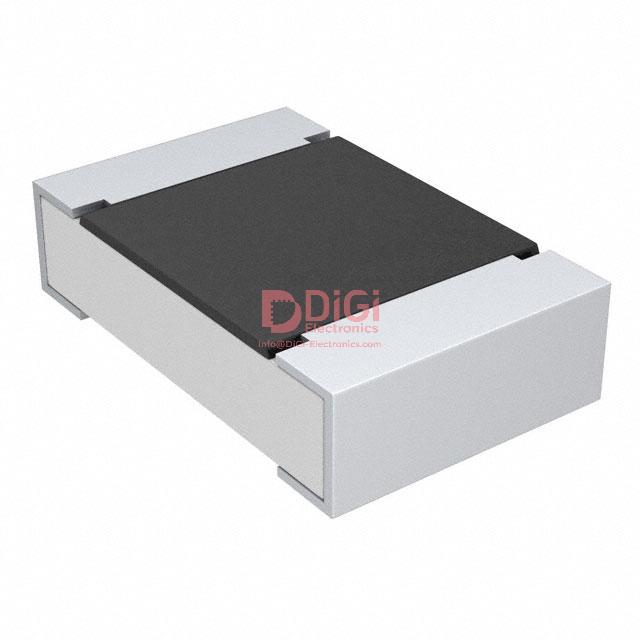

CRCW0805100KJNEA The Vishay Dale CRCW0805100KJNEA is a 100kΩ thick film chip resistor with a ±5% tolerance and a 0.125W power rating. It is AEC-Q200 qualified and comes in an 0805 package.
Mfr Part #:

CRCW0805100KJNEA

Available from 5 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale CRCW0805100KJNEA is a 100kΩ thick film chip resistor with a ±5% tolerance and a 0.125W power rating. It is AEC-Q200 qualified and comes in an 0805 package.
✓ Total Stock: 10,542 pcs
$ Price Range: $0.05

CRCW0805100KJNEA Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRCW0805100KJNEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CRCW0805100KJNEA Description

Short technical summary and product information.

The Vishay Dale CRCW0805100KJNEA is a surface mount thick film chip resistor designed for applications requiring high reliability and stability. It features a resistance of 100 kΩ with a tolerance of ±5% and a power rating of 0.125W (1/8W). The operating temperature range is -55°C to +155°C, with a temperature coefficient of ±200ppm/°C.



This resistor is AEC-Q200 qualified, making it suitable for automotive applications. It comes in an 0805 (2012 Metric) package with dimensions of 2.00mm x 1.25mm and a height of 0.50mm. The thick film composition ensures stable performance under various environmental conditions. The maximum operating voltage is 200V DC.



Key specifications include a maximum resistance change of ≤1% after 1000 hours at rated power and temperature. The failure rate is observed to be ≤0.1 x 10⁻⁹/h. This component is RoHS3 compliant and has an MSL 1 rating.

CRCW0805100KJNEA Quick Information

Product Type: Chip Resistor
Series: CRCW
Canonical Name: Vishay Dale CRCW0805100KJNEA Thick Film Chip Resistor
Subcategory: Surface Mount

CRCW0805100KJNEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRCW0805100KJNEA Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRCW0805100KJNEA Features

  • 100 kΩ resistance with ±5% tolerance.
  • 0.125W power rating in 0805 package.
  • AEC-Q200 qualified for automotive use.
  • Wide operating temperature range: -55°C to +155°C.
  • Thick film composition for stability.

CRCW0805100KJNEA Applications

  • Used in automotive electronic circuits
  • Suitable for high-density PCB designs
  • Ideal for precision resistor networks
  • Applicable in power supply filtering
  • Suitable for general electronic applications

CRCW0805100KJNEA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRCW0805100KJNEA resistor?

The resistance value is 100 kΩ.

What is the tolerance of the CRCW0805100KJNEA resistor?

The tolerance is ±5%.

What is the power rating of the CRCW0805100KJNEA resistor?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to +155°C.

Is the CRCW0805100KJNEA resistor AEC-Q200 qualified?

Yes, the CRCW0805100KJNEA resistor is AEC-Q200 qualified.

What is the package size of the CRCW0805100KJNEA resistor?

The package size is 0805 (2012 Metric).
