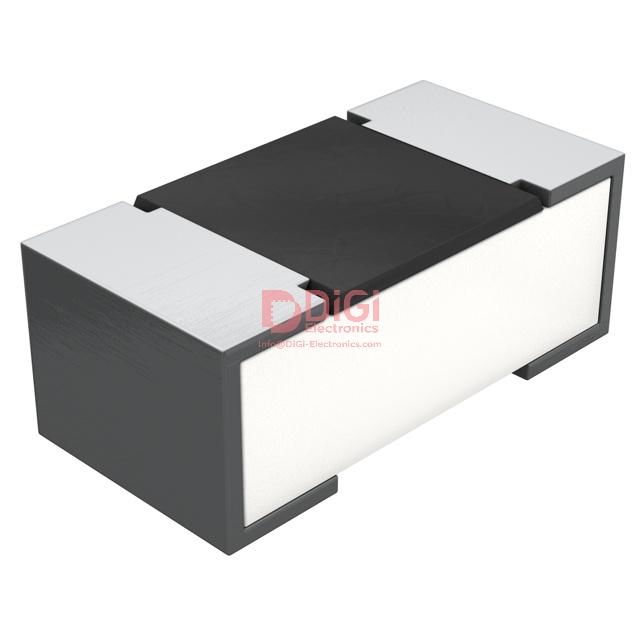

CRCW020130R0JNED The Vishay Dale CRCW020130R0JNED is a surface mount chip resistor with a resistance of 30 Ohms and a tolerance of ±5%. It features a power rating of 0.05W.
Mfr Part #:

CRCW020130R0JNED

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale CRCW020130R0JNED is a surface mount chip resistor with a resistance of 30 Ohms and a tolerance of ±5%. It features a power rating of 0.05W.
✓ Total Stock: 8,780 pcs
$ Price Range: $0.05

CRCW020130R0JNED Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
8,780 pcs
On Request
8780 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRCW020130R0JNED Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CRCW020130R0JNED Description

Short technical summary and product information.

This Vishay Dale CRCW020130R0JNED is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 30 Ohms with a tight tolerance of ±5%, ensuring precise circuit performance.



The resistor has a power rating of 0.05W (1/20W) and is constructed using thick film technology. It operates within a wide temperature range of -55°C to 155°C, with a temperature coefficient of ±200ppm/°C.



Packaged in the compact 0201 (0603 Metric) size, this component is suitable for automated assembly processes. Its dimensions are 0.60mm in length and 0.30mm in width, with a height of 0.26mm. The component has 2 terminations.



Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. This part is supplied in Tape & Reel packaging.

CRCW020130R0JNED Quick Information

Product Type: Chip Resistor - Surface Mount
Series: CRCW
Canonical Name: Vishay Dale CRCW020130R0JNED Chip Resistor - Surface Mount 30 Ohm 5% 0.05W Thick Film ±200ppm/°C -55°C ~ 155°C 0201
Subcategory: Surface Mount

CRCW020130R0JNED Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CRCW020130R0JNED Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRCW020130R0JNED Features

  • 30 Ohm resistance with ±5% tolerance.
  • 0.05W power rating for general use.
  • Thick film composition for reliability.
  • Wide operating temperature range: -55°C to 155°C.
  • Compact 0201 (0603 Metric) surface mount package.

CRCW020130R0JNED Applications

  • Suitable for general purpose circuits.
  • Ideal for high-density PCB designs.
  • Used in consumer electronics.
  • Applicable in industrial control systems.

CRCW020130R0JNED FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRCW020130R0JNED?

The resistance value is 30 Ohms.

What is the tolerance of the CRCW020130R0JNED resistor?

The tolerance is ±5%.

What is the power rating of the CRCW020130R0JNED?

The power rating is 0.05W, or 1/20W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the CRCW020130R0JNED available in?

It is available in the 0201 (0603 Metric) package size.
