| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,982 pcs
|
3982 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Inductance | |
| Insulation Resistance | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

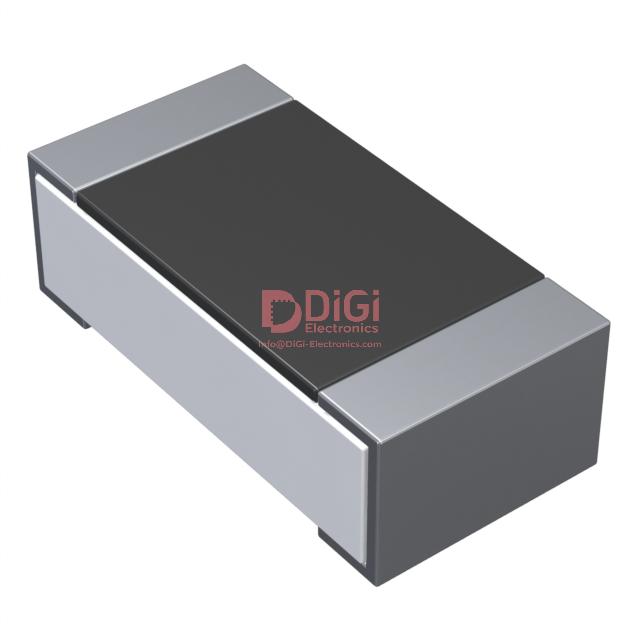

The Bourns CRA2512-FZ-R075ELF is a high-power current sense chip resistor designed for applications requiring precise current monitoring. It features a resistance value of 75 milliohms with a tight tolerance of ±1% and a significant power rating of 3W at 70°C.
This resistor operates within a wide temperature range of -55°C to +170°C, making it suitable for harsh environments. It boasts low thermal EMF of less than 40 µV/°C and an inductance of less than 5 nH, crucial for sensitive circuits. The component is AEC-Q200 compliant, indicating its suitability for automotive applications.
Constructed with a metal element and available in a 2512 package size, the CRA2512-FZ-R075ELF is designed for surface mounting. Its robust construction and compliance with automotive standards make it a reliable choice for power supplies, stepper motor drives, and input amplifiers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 75 milliohms.
The power rating is 3W at 70°C.
The tolerance is ±1%.
The operating temperature range is -55°C to +170°C.
Yes, the resistor is AEC-Q200 compliant.
The temperature coefficient is ±50 PPM/°C.
The dimensions are 6.45mm L x 3.35mm W.
