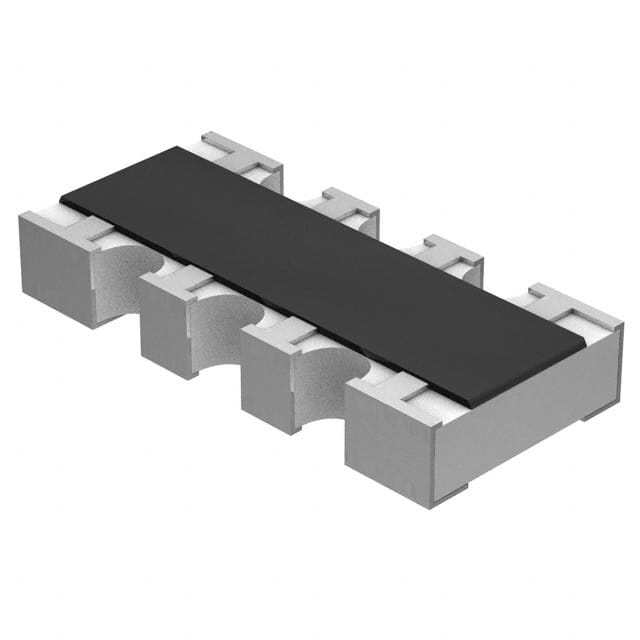

CRA06S0836K81FTA The Vishay Dale CRA06S0836K81FTA is a resistor array featuring 4 isolated resistors with a total resistance of 6.81k Ohm and a ±1% tolerance. It is designed for surface mounting in a 1206 package.
Mfr Part #:

CRA06S0836K81FTA

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale CRA06S0836K81FTA is a resistor array featuring 4 isolated resistors with a total resistance of 6.81k Ohm and a ±1% tolerance. It is designed for surface mounting in a 1206 package.
✓ Total Stock: 2,150 pcs
$ Price Range: $0.05

CRA06S0836K81FTA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,150 pcs
On Request
2150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CRA06S0836K81FTA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit Type
Height
Insulation Resistance
Length
Limiting Element Voltage
Mounting Type
Number of Pins
Number of Resistors
Operating Temperature
Power Per Element
Resistance (Ohms)
Storage Temperature
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CRA06S0836K81FTA Description

Short technical summary and product information.

This Vishay Dale CRA06S0836K81FTA is a thick film resistor array constructed on a high-grade ceramic body. It offers 4 isolated resistors, each with a resistance value of 6.81k Ohm and a tolerance of ±1%. The component is designed for surface mounting and comes in a 1206 package.



The operating temperature range for this resistor array is -55°C to +155°C, with a temperature coefficient of ±100ppm/°C. The power dissipation per element is 62.5mW. The component features a convex terminal array and long side terminals, suitable for high-density circuit designs.



Key electrical specifications include a limiting element voltage of 50V and an insulation voltage of 100V dc/ac peak. The insulation resistance is greater than 10 Gigaohms. The pure tin plating on the solder contacts ensures compatibility with both lead-free and lead-containing soldering processes.



This resistor array is designed to reduce board space, component counts, and assembly costs in electronic circuits. Its isolated circuit configuration provides flexibility in design.

CRA06S0836K81FTA Quick Information

Product Type: Resistor Network/Array
Series: CRA06S
Canonical Name: Vishay Dale CRA06S Series Resistor Array, 6.81k Ohm, ±1% Tolerance, 4 Resistors, Isolated Circuit, 1206 Package
Subcategory: Resistor Array

CRA06S0836K81FTA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free / RoHS Compliant

CRA06S0836K81FTA Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CRA06S0836K81FTA Features

  • Four isolated resistors in one package.
  • 6.81k Ohm resistance with ±1% tolerance.
  • Surface mountable 1206 package.
  • Wide operating temperature range.
  • RoHS3 Compliant.

CRA06S0836K81FTA Applications

  • Used in high-density circuit designs.
  • Suitable for signal conditioning circuits.
  • Component count reduction.
  • Board space saving applications.

CRA06S0836K81FTA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CRA06S0836K81FTA resistor array?

The resistance value is 6.81k Ohm.

What is the tolerance of the CRA06S0836K81FTA resistor array?

The tolerance is ±1%.

How many resistors are in the CRA06S0836K81FTA resistor array?

There are 4 resistors in this array.

What is the operating temperature range for the CRA06S0836K81FTA?

The operating temperature range is -55°C to +155°C.

What type of package does the CRA06S0836K81FTA use?

It uses a 1206 (3216 Metric), Convex, Long Side Terminals package.

Is the CRA06S0836K81FTA RoHS compliant?

Yes, it is RoHS3 Compliant.
