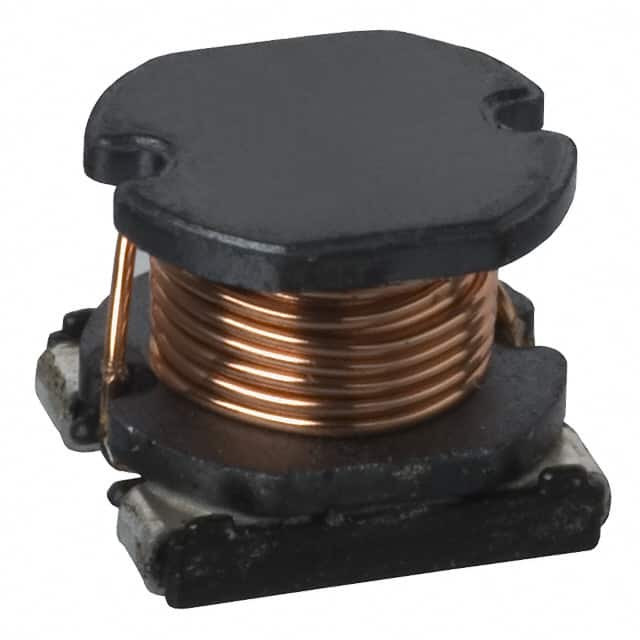

The CR54NP-220MC is a surface mount fixed inductor from Sumida, part of the CR54 series. It features a ferrite drum core construction and is magnetically unshielded. This inductor provides a nominal inductance of 22 µH with ±20% tolerance, measured at 2.52 MHz. It is rated for a DC current of 1.11 A, at which the inductance drops to 90% of its initial value or the temperature rise reaches 40°C, whichever occurs first.
The maximum DC resistance is 180 mΩ at 20°C. The self-resonant frequency is typically 19.5 MHz. The operating temperature range is -40°C to +100°C, including the coil's self-temperature rise. The component is RoHS3 compliant, has a moisture sensitivity level of 1 (unlimited), and is available halogen-free.
The inductor measures 5.8 mm × 5.3 mm × 4.85 mm and comes in a nonstandard surface mount package. It is supplied in tape and reel packaging with 1500 pieces per reel on a 12.9-inch reel. The solder reflow peak temperature is 260°C.
Typical applications include DC-DC converters in A/V equipment, LCD TVs, DSC/DVC, game machines, HDDs, and notebook PCs.
