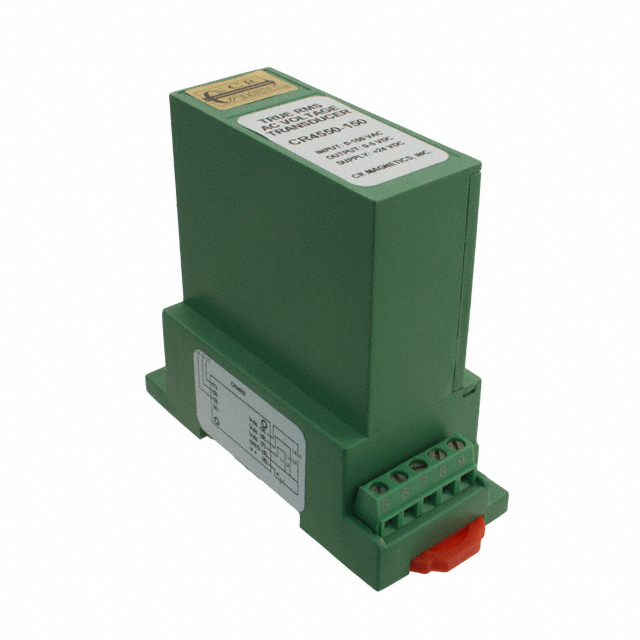

The CR4550-150 is a True RMS AC Voltage Transducer designed for applications with non-sinusoidal AC voltage waveforms, such as phase-fired controlled devices and chopped waveform drivers. It provides precise and accurate measurements.
This transducer features a 0-150VAC input range and a 0-5VDC output, operating from a 24VDC supply. It offers 2500VDC isolation and an accuracy of 0.5%. The response time is 250ms.
Designed for easy integration, the CR4550-150 supports DIN rail or panel mounting and utilizes screw terminals for connection. It operates within a temperature range of 0°C to 60°C. The unit is recognized by CE and cURus regulatory agencies.
This series is ideal for monitoring AC voltage in systems where waveforms deviate from pure sine waves, ensuring reliable data for control and analysis.
The input voltage range is 0-150 VAC.
The output voltage is 0-5 VDC.
The device operates at 24 VDC.
The isolation voltage is 2500 VDC.
The accuracy is 0.5%.
The response time is 250 milliseconds.
It uses DIN Rail mounting.
