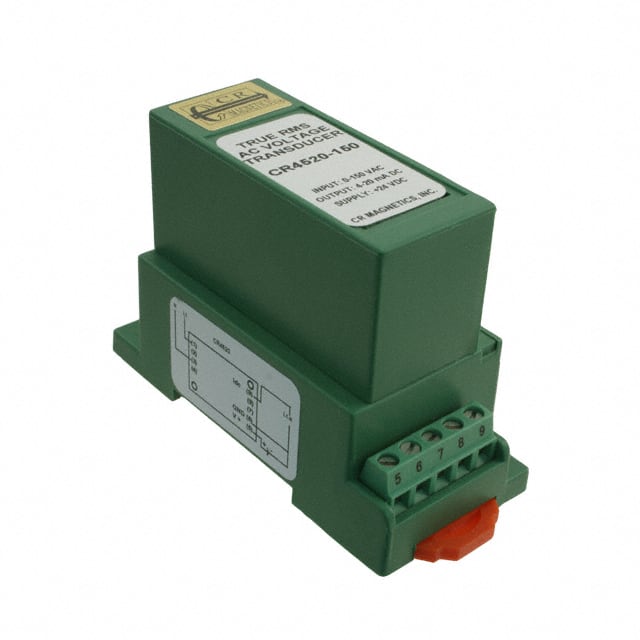

CR4520-150 The CR Magnetics CR4520-150 is a True RMS AC Voltage Transducer designed for precise voltage monitoring. It offers a 0-150VAC input range and a 4-20mA output, powered by 24VDC.
Mfr Part #:

CR4520-150

Available from 1 distributors
Mfr Name: CR Magnetics Inc.
CR Magnetics Inc.
The CR Magnetics CR4520-150 is a True RMS AC Voltage Transducer designed for precise voltage monitoring. It offers a 0-150VAC input range and a 4-20mA output, powered by 24VDC.
✓ Total Stock: 1 pcs

CR4520-150 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CR4520-150 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Approval Agency
Input Range
Isolation
Mounting Type
Operating Temperature
Output
Response Time
Supply Voltage
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

CR4520-150 Description

Short technical summary and product information.

The CR Magnetics CR4520-150 is a True RMS AC Voltage Transducer suitable for applications with non-sinusoidal AC voltage waveforms, such as phase-fired controlled devices and chopped waveform drivers. It provides accurate voltage measurements with a 0-150VAC input range and a 4-20mA output signal.



This transducer operates on a 24VDC supply and features a high precision accuracy of 0.5%. The outputs are isolated from the inputs, ensuring system integrity. It is designed for easy installation with both 35mm DIN rail mount and panel mount options, and utilizes screw terminals for connection.



The CR4520-150 meets regulatory standards including UL 61010B-1 recognition and compliance with CAN/CSA-C22.2 No. 61010-1-2004, IEC 61010-1, and BS EN 61010-1. Its robust construction and reliable performance make it ideal for demanding industrial monitoring applications.

CR4520-150 Quick Information

Product Type: Voltage Transducer
Canonical Name: CR Magnetics Inc. CR4520-150 True RMS AC Voltage Transducer
Subcategory: AC Voltage Transducer

CR4520-150 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CR4520-150 Features

  • True RMS AC Voltage Transducer.
  • 0-150VAC input range.
  • 4-20mA output signal.
  • 24VDC powered.
  • DIN rail or panel mount.

CR4520-150 Applications

  • Ideal for phase-fired control systems.
  • Suitable for quickly varying voltage supplies.
  • Used in chopped waveform drivers.
  • Monitors harmonic voltages.

CR4520-150 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the CR4520-150?

The input voltage range is 0 to 150 VAC.

What is the output signal of the CR4520-150?

The output signal is 4 to 20 mA.

What supply voltage is required for the CR4520-150?

The transducer requires a 24 VDC supply.

What is the accuracy of the CR4520-150 voltage transducer?

The accuracy is 0.5%.

How is the CR4520-150 mounted?

It can be mounted on a 35mm DIN rail or a panel.

What is the operating temperature range for this voltage transducer?

The operating temperature range is 0°C to 60°C.
