| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Capacity (Nominal) | |
| Diameter | |
| Height | |
| Lead Style | |
| Operating Temperature Range | |
| Standard Discharge Current | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination Style | |
| UL | |
| Voltage | |
| Voltage (Nominal) | |
| Weight |

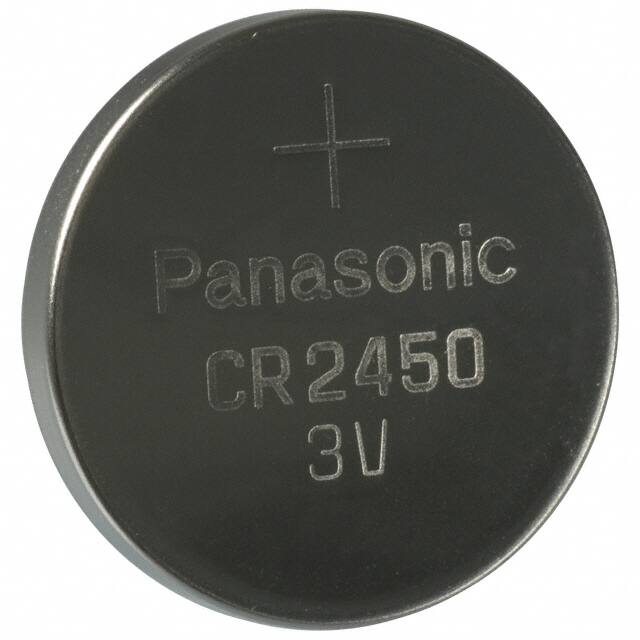

The Panasonic CR2450 is a primary lithium manganese dioxide coin cell battery with a nominal voltage of 3V and a nominal capacity of 610mAh (at 0.2mA standard discharge current). It has a diameter of 24.5mm and a height of 5.0mm, with a weight of 6.5g. The operating temperature range is -30°C to +70°C.
The CR2450 is designed for low-power memory backup applications such as SRAM and real-time clocks (RTC). It requires a separate battery holder for connection, as the termination style is not solderable. The battery is UL recognized (certification number MH12566) and is RoHS3 compliant.
Typical applications include industrial and consumer electronics where a stable 3V backup power source is needed. The battery provides a reliable long-life solution for devices that need to retain data during power loss.
3V.
610 mAh.
Lithium Manganese Dioxide.
-30°C to +70°C.
Coin, 24.5mm diameter.
Yes, the termination style requires a holder for connection.
Yes, UL Recognized component with certification number MH12566.
