| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Continuous Discharge Hours (to 2.0V @ 15kΩ) | |
| Continuous Drain Current (Typical @ 2.9V) | |
| Energy Density (gravimetric) | |
| Energy Density (volumetric) | |
| Halogen Free | |
| Lead Style | |
| Max Reverse Charge Current | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Pulse Drain Current (Typical @ 2.7V) | |
| Self Discharge Rate | |
| Termination Style | |
| Typical Lithium Content | |
| Typical Volume | |
| Typical Weight | |
| Voltage | |
| capacity (Typical @ 15 kΩ load, 21 °C, cutoff 2.0 V) | |
| capacity (Typical) |

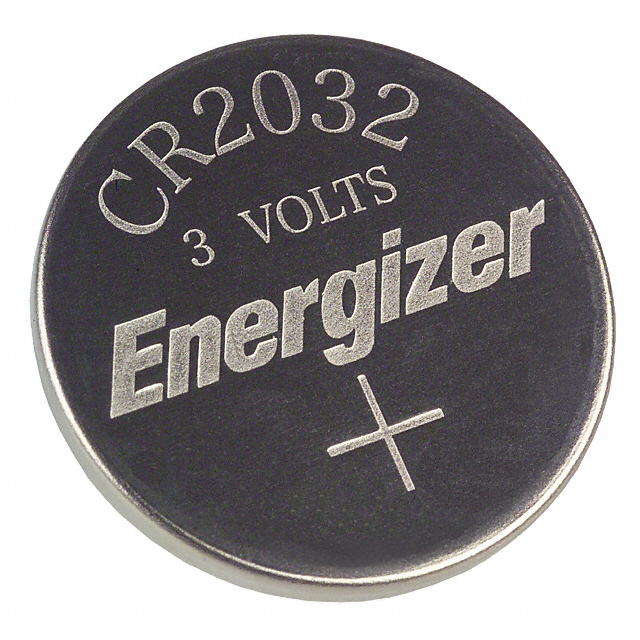

The Energizer CR2032VP is a Lithium Manganese Dioxide (Li/MnO2) non-rechargeable coin cell battery. It delivers a nominal voltage of 3.0 volts with a typical capacity of 240 mAh (rated to 2.0V at 15 kΩ load at 21°C). The cell measures 20.0mm in diameter by 3.2mm in height, consistent with the industry standard CR2032 form factor.
Key electrical characteristics include a continuous drain current of 0.19 mA at 2.9V and pulse capability of approximately 6.8 mA at 2.7V. The battery offers a low self-discharge rate of about 1% per year, making it suitable for long-term use in low-power devices. Its operating temperature range spans -30°C to 60°C.
The CR2032VP requires a holder for termination and is not designed for direct soldering. It is classified under ANSI/NEDA-5004LC and IEC-CR2032 standards. Typical lithium content is 0.109 grams.
The nominal voltage is 3.0 V.
240 mAh (typical, to 2.0V at 15kΩ load at 21°C).
-30°C to 60°C.
Coin, 20.0mm diameter (20.0mm x 3.2mm).
RoHS3 Compliant (unverified).
Yes, termination style is 'Requires Holder'.
