| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
575 pcs
|
575 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Diameter | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Weight |

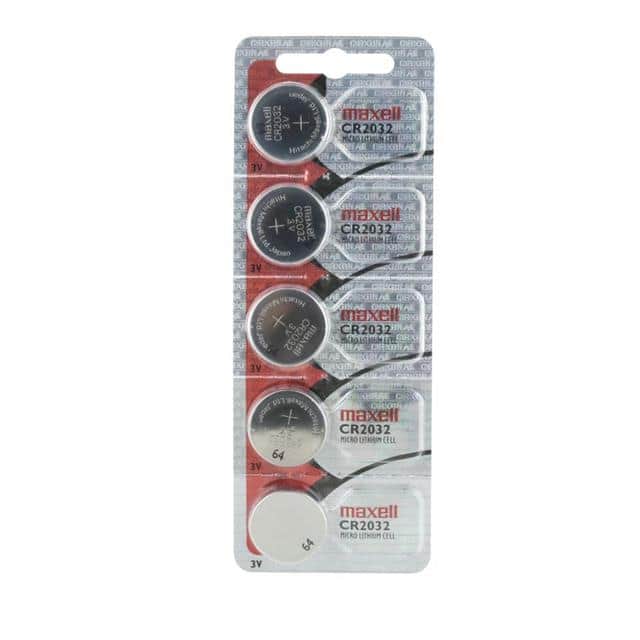

The CR2032 is a lithium manganese dioxide (Li/MnO2) non-rechargeable coin cell battery. It delivers a nominal voltage of 3V and a nominal capacity of 240mAh under a standard load of 15 kΩ. The cell measures 20.0mm in diameter and 3.2mm in height, with an approximate weight of 2.9g.
Electrical characteristics include a standard current of 0.2 mA, a maximum continuous current of 3 mA, and a maximum pulse current of 15 mA. The operating temperature range is -30°C to +85°C. The battery requires a holder for termination.
This cell is recognized by UL and is compliant with RoHS (Pb free) and REACH (mineral free). It is suitable for a wide range of low-power portable and backup applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.75 | $4.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 V
240 mAh
-30°C to +85°C
Yes, RoHS compliant Pb free
Lithium Manganese Dioxide (Li/MnO2)
20.0mm diameter x 3.2mm height
3 mA
