| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
194 pcs
|
194 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Diameter | |
| Height | |
| Lead Style | |
| Max. Continuous Current | |
| Max. Pulse Current | |
| Mounting Type | |
| Nominal Capacity | |
| Operating Temperature | |
| Standard Current | |
| Standard Load | |
| Tape & Reel | |
| Termination Style | |
| UL | |
| Voltage | |
| Weight | |
| nominal_capacity (Nominal) |

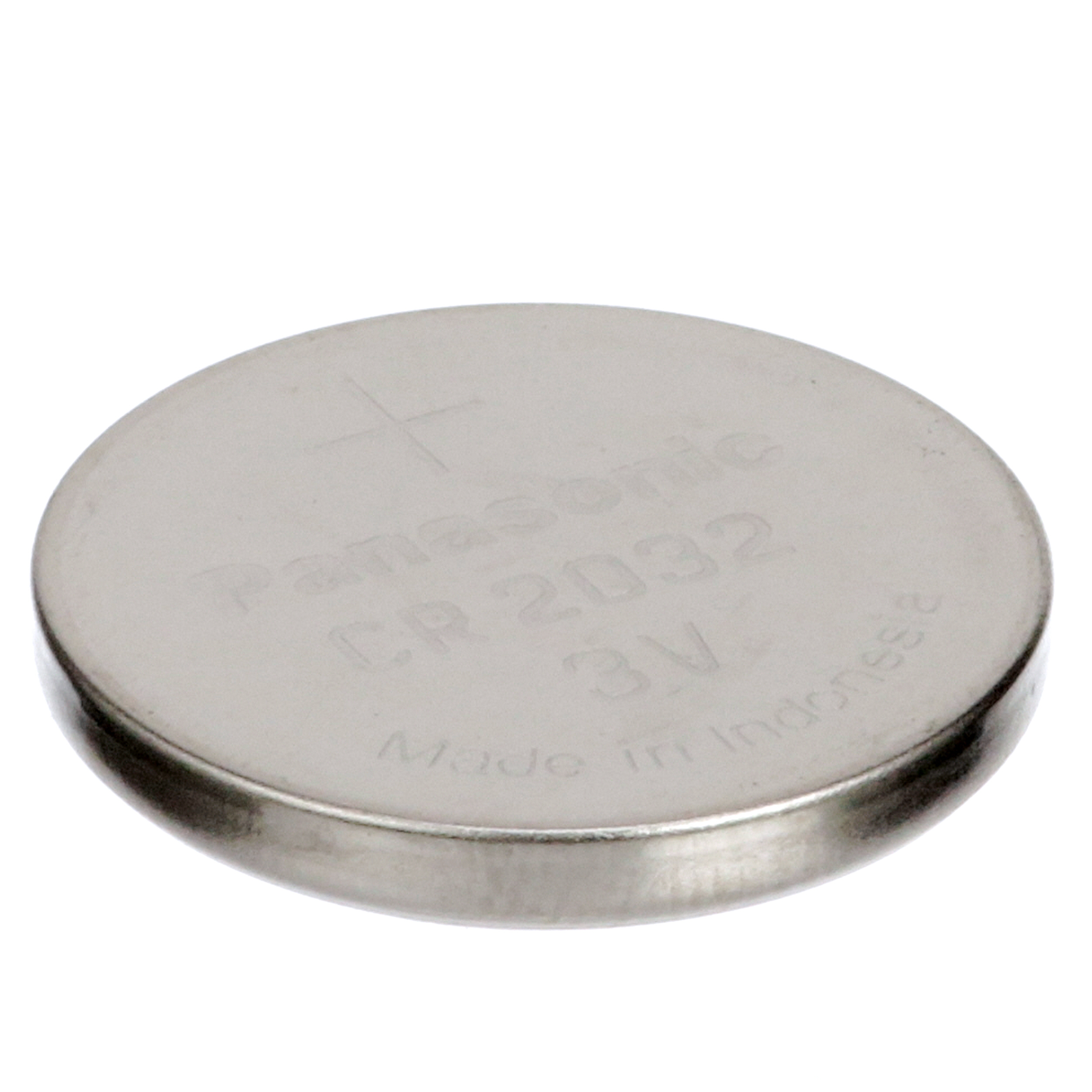

The CR2032 is a non-rechargeable lithium manganese dioxide coin cell battery from Panasonic Electronic Components. It delivers a nominal voltage of 3V and a nominal capacity of 240mAh under a standard load of 15kΩ. The battery supports a maximum continuous current of 3mA and a maximum pulse current of 15mA.
This coin cell operates over a temperature range of -30°C to +85°C and weighs approximately 2.9g. Its dimensions are 20.00mm diameter and 3.2mm height. The termination style requires a holder, making it suitable for various battery holder designs.
The CR2032 is RoHS3 compliant (2011/65/EC), REACH unaffected, and UL1642 recognized. It is commonly used in applications such as memory backup, real-time clocks, and portable electronics where a compact, reliable primary power source is needed.
The nominal voltage is 3V.
The nominal capacity is 240mAh under a standard load of 15kΩ.
The operating temperature range is -30°C to +85°C.
Yes, the CR2032 is RoHS3 compliant per directive 2011/65/EC.
The diameter is 20.00mm and the height is 3.2mm.
The maximum continuous current is 3mA.
Yes, the termination style requires a holder.
