| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,392 pcs
|
4392 pcs | On Request | 1 | On Request | On Request | 0444 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Lead Style | |
| Nominal Voltage | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Weight |

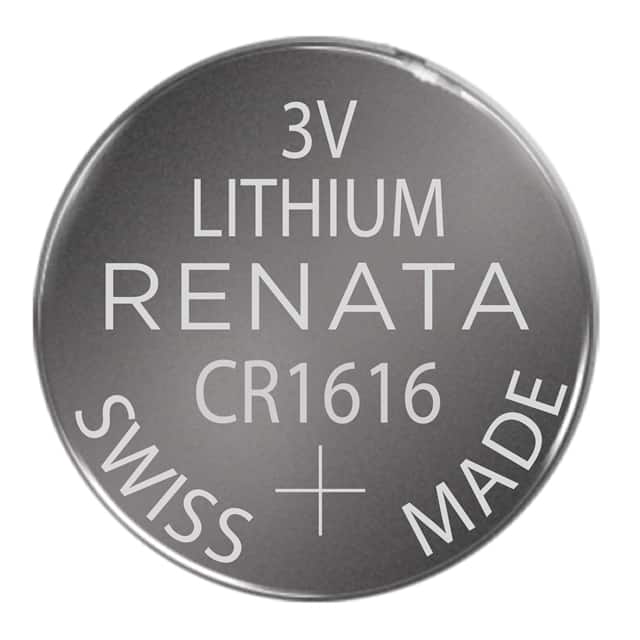

The CR1616 is a non-rechargeable lithium manganese dioxide (LiMnO2) coin cell battery with a nominal voltage of 3V and a capacity of 55mAh. It measures 16mm in diameter and 1.6mm in height, weighing just 1.2g. The battery operates reliably across a temperature range of -30°C to +60°C and requires an external holder for termination.
Key characteristics include good pulse capability, high discharge characteristics, a stable voltage level during discharge, and long-term reliability. These properties make it suitable for applications where a compact, lightweight power source is needed.
The battery is designed for use in low-power electronics such as remote controls, memory backup systems, medical devices, and small portable equipment. Its coin form factor allows for space-efficient integration into PCB designs.
The nominal voltage is 3V.
The nominal capacity is 55mAh.
The operating temperature is -30°C to +60°C.
Lithium Manganese Dioxide.
It is a coin cell with 16mm diameter and 1.6mm height.
It requires a holder for termination.
The RoHS status is listed as RoHS3 compliant but this is unverified.
