| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Lead Style | |
| Mounting Style | |
| Package / Case | |
| Size | |
| Termination Style | |
| Voltage |

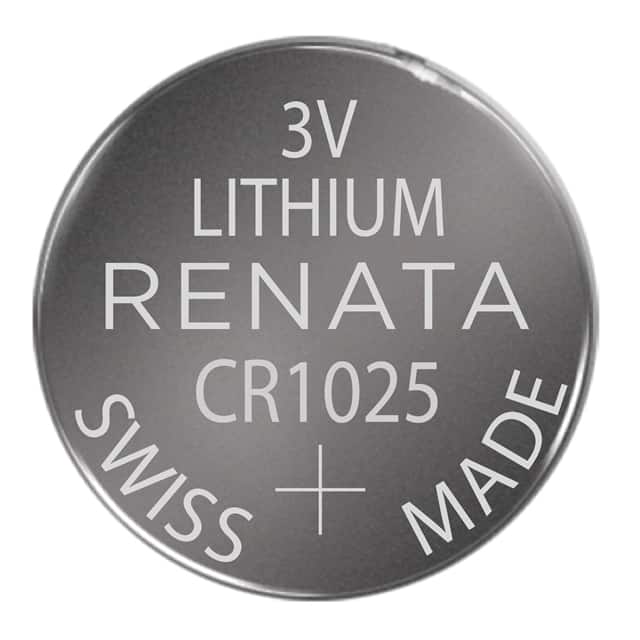

The CR1025 is a compact lithium manganese dioxide coin cell battery from Renata, offering a nominal voltage of 3V and a capacity of 30mAh.
With a diameter of 10mm and a height of 2.5mm, it is designed for applications requiring a small form factor power source. The battery features a standard load of 68kΩ and a standard discharge current of 0.05mA, with a maximum pulse current of 5mA. It operates over a wide temperature range of -30°C to +85°C, making it suitable for various environments.
The battery requires a holder for termination and is RoHS and REACH compliant. Typical applications include memory backup, real-time clocks, and small portable devices.
3V
10.0mm diameter x 2.5mm height, coin cell package.
-30°C to +85°C
Yes, RoHS compliant (2011/65/EU) and REACH compliant.
30mAh
Lithium Manganese Dioxide
Requires holder
