| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,796 pcs
|
5796 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Lead Style | |
| Mounting Type | |
| Power Rating | |
| Resistance | |
| SVHC Present | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage Rating |

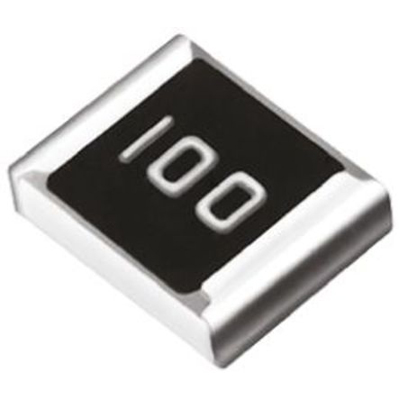

The CR0805-JW-104ELF is a surface mount thick film resistor manufactured by Samsung Electronics. This component offers a resistance value of 100 kOhm with a tolerance of 5%. It is designed for a power rating of 1/8W and operates within a temperature range of -55°C to 155°C.
The resistor is housed in an 0805 package (2012 metric) and utilizes SMD/SMT termination style, making it suitable for automated assembly processes. Its thick film composition ensures reliable performance in various electronic applications.
Key electrical characteristics include a voltage rating of 150V and a temperature coefficient of 200 ppm/°C. The component is compliant with RoHS3 standards and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the CR0805-JW-104ELF resistor is 100 kOhm.
The tolerance of the CR0805-JW-104ELF resistor is 5%.
The power rating of the CR0805-JW-104ELF resistor is 1/8W.
The temperature coefficient of the CR0805-JW-104ELF resistor is 200 ppm/C.
The operating temperature range for the CR0805-JW-104ELF resistor is -55C to 155C.
The voltage rating of the CR0805-JW-104ELF resistor is 150V.
The package type for the CR0805-JW-104ELF resistor is 0805.
